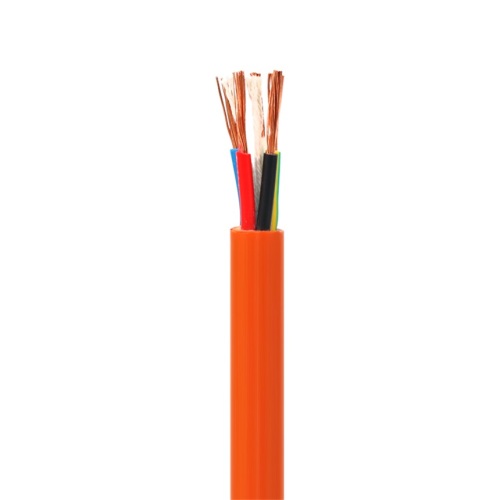

2 & 3Core& Earth PVC Circular Orange Cable

The orange circular cable is suitable for export to Australia, and must meet the Australian standard

ASNZS5000.1 and ASNZS5000.2 standard，And Got the SAA approval.

Standard packing of the Australian standard orange cable,

For conductor sizes 1.5 to 16.0mm², packing in 1000m drum

For conductor sizes 25 & 35mm², packing in 500m drum

For conductor sizes 50 & 120mm², packing in 250m drum

2 & 3 Core& Earth PVC O/C Circular Orange Cable 0.6/1.0KV

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed copper

Insulation Material : V-90

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Sheath Colour : Orange

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

Low Voltage Orange Power Cables and Orange Circular Cable suitable for power networks, direct burial, outdoors,

indoors and in cable ducts, where not subject to mechanical damage may occur.
