Multi Core SWA Orange Circular Armoured Cable

Electrical Wires and Electrical cables are divided into five categories according to their uses: bare wires, winding cable, power cable, communication cable ,communication optical cable, and wires and cables for electrical equipment. Control cable belong to the main force of wires and cables for electrical equipment in the five categories, and are suitable for AC The rated voltage U0/U is 450 V/750 V 0.6/1KV and below for control, monitoring circuits and protection circuits. The current domestic standard is GB/T 9330-2008 "Plastic Insulated Control Cable", and the export control cable adopts Australia/New Zealand Standard AS/NZS 5000

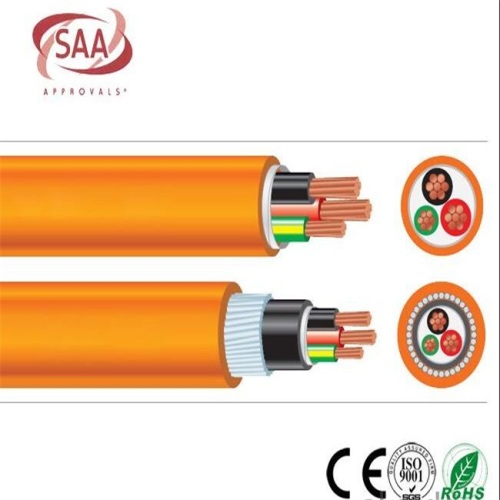

Multi Core PVC or XLPE SWA Orange Circular Armoured Cable 0.6/1KV

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed copper

Insulation Material :XLPE/ V-90 PVC

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Armoured: Galvanized Steel Wires

Sheath Colour : Orange

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

SWA Orange Circular Cable - power and auxiliary control cables for use in power networks,

underground, outdoor and indoor applications and for use in cable ducting.--SWA Armoured Cable
