V-90 Insulated Orange Circular Power Cable with SAA

Australian cable SAA standards AS/NZS5000.1 and AS/NZS5000.2 Before entering the Australian and New Zealand market, electrical safety certification (SAA certification) must be carried out, and it is marked with an approved book number and a mark of compliance. In order to quickly help enter the Australian market, BendaKang manufacturer have completed testing many years ago. Prepared technical documents and obtained SAA certification. Many Australian standard cables have been exported to various countries in Oceania, and the product quality is well-known all over the world.The products include Australian standards orange cable circular, flat tps cable, single-core wire, flexible cable, etc.

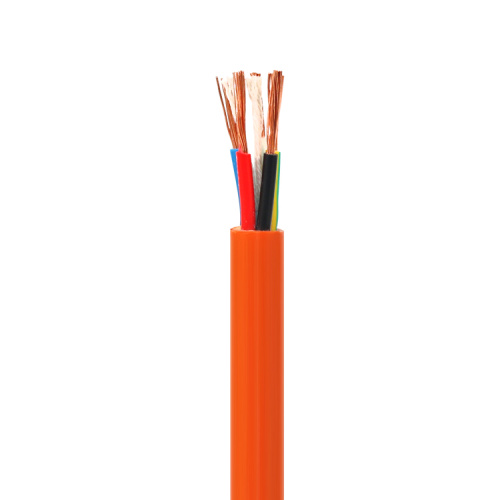

0.6/1KV PVC V-90 Insulated Orange Circular Power Cable with SAA approval

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed copper

Insulation Material : V-90

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Sheath Colour : Orange

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

Low Voltage 2 & 3 Core plus Earth Circular Cable, Copper Conductor, V-90 PVC Insulated and 5V-90 PVC Sheathed, to AS/NZS 5000.1
suitable for power networks, direct burial, outdoors, indoors and in cable ducts, where not subject to mechanical damage may occur.

Why choose us-BDK Cable ?

1.       We engaged in oversea market from 2008, supply oversea partners around 60 countries.

based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.

2.       A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .

3.       A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.

4.       We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
