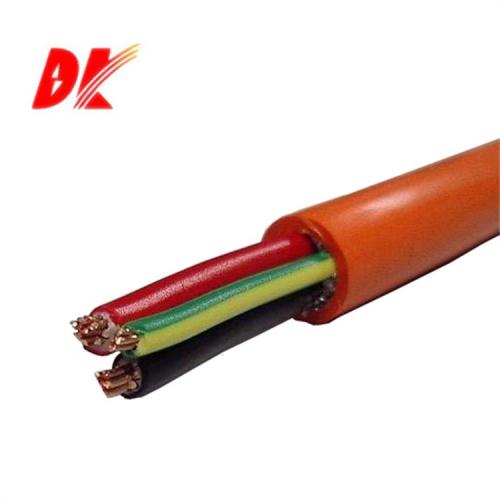

Orange Circular Cable to AS/NZS Standards
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50 kilometer/ day |
| Supply Ability: | 50 kilometer/ day |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | SAA/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |
Orange cable AS/NZS 5000.1-0.6/1KV multi-core polyvinyl chloride power wire Australian standard cable is widely used in power plants, industrial and switchgear installations and power companies, etc., and can also be used indoors and for circuit control in cable ducts. No harmful substances, compliant with RoHS or REACH directive,0.6/1KV multi-core V90-PVC power cable circular orange Australian standard cable meets SAA standards, so that the circular orange cable can be used in the Australian and New Zealand markets
2C+E 3C+E 4C+E Orange Circular Cable to AS/NZS Standard
Technical Data:
Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2
sizes 10mm² to 120mm² refer to AS/NZS 5000.1
Conductor : Fine plain annealed copper
Insulation Material : V-90
Core colours : red, white, blue, gn/ye
Sheath Material : 5V-90
Sheath Colour : Orange
Electrical Data:
Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V
for sizes 10mm² to 120mm² - 600/1000V
Test Voltage : 3.5kV/5min
Insulation Resistance : Min 5 Mohm/km
Mechanical data:
Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)
≥ 35mm² 6 x OD (fixed installation)
Temperature Rating : up to +90°C
Why choose us-BDK Cable ?
1.We engaged in oversea market from 2008, supply oversea partners around 60 countries.
based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.
2.A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .
3.A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.
4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
