H05Z-K LSOH electric wire for fire retardant cable
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 kilometer/ day |
| Supply Ability: | 100 kilometer/ day |
| Payment Type: | L/C,T/T,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | CE/ SAA/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |

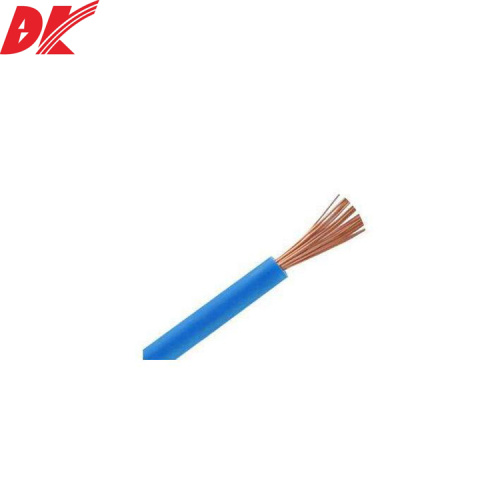

H05Z-K LSOH electric wire for fire retardant cable
Cable Construction:
Conductor: Flexible class 5 bare copper
Insulation: LSZH compound
Core color: Brown, Grey, Black, Blue, Green/Yellow
or others on request
Rated Voltage Uo/U 300 / 500 V
Technical Data:
Nominal Voltage : H05Z-K U / U 300 / 500V,
H07Z-K U / U 450 / 750V .
Harmonised Designation : 0.5mm to 1 mm - H05Z-K,
1.5mm to 240mm - H07Z-K
Temperature Range : -15°C to +90°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V
Application: electric wire,H05Z-K ,The wires are flexible conductors used for the stranding of electric switchboards or lighting systems, etc,
they are particularly recommended where fire risks are important, and for public installations or closed areas,
also fit sensible buildings such as datas and electronic rooms.
And we have other fire resistance cable ,fire proof cable ,fire rated cable ,Welcome to view
|
|
