Single Core Building Wire SDI Cable 450/750V

Most of the current national building wire supply standards are based on safety and fire protection. Except for a few, these standards fail to pay enough attention to power efficiency and adequate grounding of circuits, especially modern electrical problems called "power quality". Solving the power quality by using more or larger conductors has positive significance for the use of copper conductors. It should be particularly emphasized that harmonic currents are often generated in switch-mode power supplies of commonly used "solid-state" electronic equipment. They can break down weak parts of the circuit and cause dangerous overheating of the transformer. Double-layer insulated wire (SDI cable) have protection. The wire is not damaged by the outside world, and at the same time, it can prevent the damage caused by insulation breakdown.Single Core Building Wire PVC / XLPE SDI Cable 450/750V

CONSTRUCTION:

Conductor:

1mm² to 2.5mm²: Class 1 solid copper conductor

4mm² to 25mm²: Class 2 stranded copper conductor

Insulation:

V90-PVC (Polyvinyl Chloride)/XLPE

Sheath:V-90 PVC (Polyvinyl Chloride)

Insulation Colour:Black White ,Red, Blue, Brown

Sheath Colour:Black ,Red, Blue, Brown

CHARACTERISTICS

Voltage Rating Uo/U 0.6/1KV,450/750V

Temperature Rating:Fixed: -15°C to +90°C

Minimum Bending Radius:

Up to 6mm² - Fixed: 3 x overall diameter

10mm² to 25mm² - Fixed: 4 x overall diameter

APPLICATION

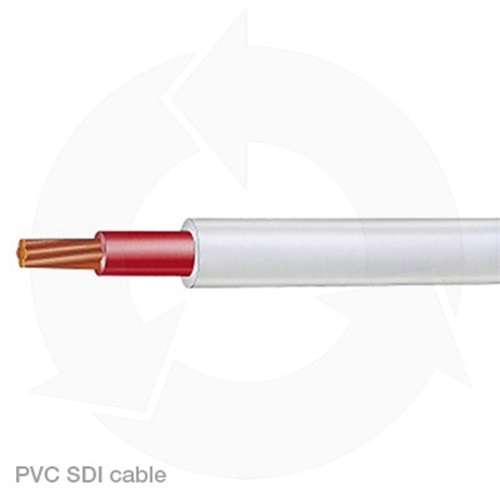

SDI cable is PVC single core Double insulated cable, it is double insulated cable wire with a voltage rating of 450/750V 06/1KV.

It’s a general surface wire cable for fixed installation, domestic and light industrial use.

Why choose us-BDK Cable ?

1. We engaged in oversea market from 2008, supply oversea partners around 60 countries.

based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.

2. A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .

3. A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.

4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
