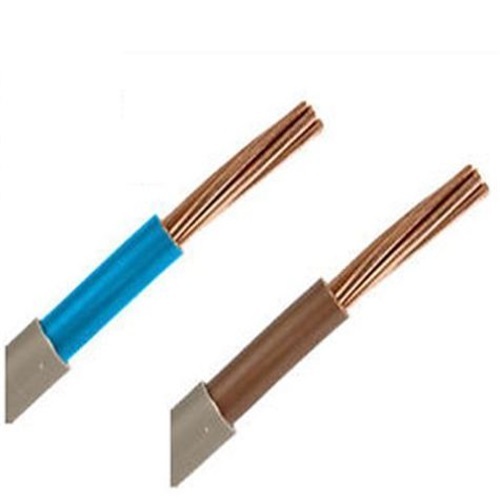

Single Core 6181Y Double Insulated Surface Wiring Cable

Single Core 6181Y Double Insulated Surface Wiring Cable

CONSTRUCTION:

Conductor:

1mm² to 2.5mm²: Class 1 solid copper conductor

4mm² to 25mm²: Class 2 stranded copper conductor

Insulation:

PVC (Polyvinyl Chloride)

Sheath:PVC (Polyvinyl Chloride)

Insulation Colour:Blue Brown

Sheath Colour:Grey

CHARACTERISTICS

Voltage Rating Uo/U 300/500V

Temperature Rating:Fixed: -5°C to +70°C

Minimum Bending Radius:

Up to 6mm² - Fixed: 3 x overall diameter

10mm² to 25mm² - Fixed: 4 x overall diameter

APPLICATION

6181Y is a PVC single core cable, it is double insulated cable wire with a voltage rating of 300/500V.

It’s a general surface wire cable for fixed installation, domestic and light industrial use.

Why choose us-BDK Cable ?

1.       We engaged in oversea market from 2008, supply oversea partners around 60 countries.

based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.

2.       A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .

3.       A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.

4.       We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
