300/500V 6181Y PVC Double Insulated Wiring Cable
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 kilometer/ day |
| Supply Ability: | 100 kilometer/ day |
| Payment Type: | L/C,T/T,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | CE/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |

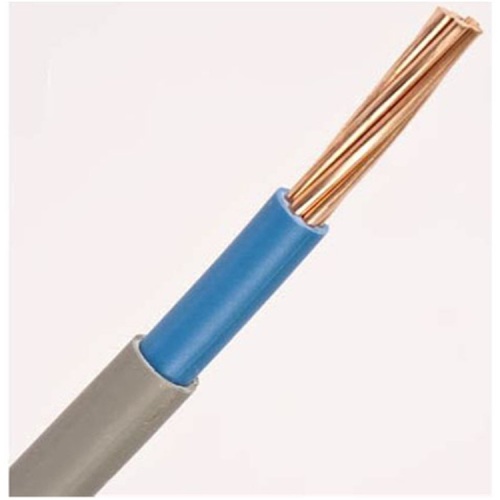

Double insulated cable It has a conductive wire conductor, insulating layer is arranged on the outside. The insulating layer is double-layer structure with an inner insulated and outer sheathed. It is low-smoke halogen-free flame retardant cross-linked polyolefin insulation material or environmentally friendly polyvinyl chloride. The effect is that the cable insulation layer produced by this method can meet the requirements of civil nuclear facility projects on the flame retardant performance, electrical performance, mechanical performance, radiation resistance performance and long-term life performance of the cable insulation layer.It’s a general surface wire cable for fixed installation, domestic and light industrial use,300/500V 6181Y PVC Single Core Double Insulated Wiring Cable.
CONSTRUCTION:
Conductor:
1mm² to 2.5mm²: Class 1 solid copper conductor
4mm² to 25mm²: Class 2 stranded copper conductor
Insulation:
PVC (Polyvinyl Chloride)
Sheath:PVC (Polyvinyl Chloride)
Insulation Colour:Blue Brown
Sheath Colour:Grey
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Temperature Rating:Fixed: -5°C to +70°C
Minimum Bending Radius:
Up to 6mm² - Fixed: 3 x overall diameter
10mm² to 25mm² - Fixed: 4 x overall diameter
APPLICATION
6181Y is a PVC single core cable, it is double insulated cable wire with a voltage rating of 300/500V.
Why choose us-BDK Cable ?
1. We engaged in oversea market from 2008, supply oversea partners around 60 countries.
based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.
2. A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .
3. A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.
4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
