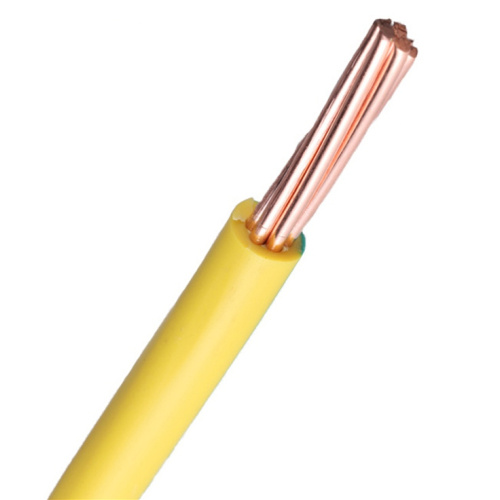

H05V-R H07V-R NYAF PVC Insulated Building Wire
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 kilometer/ day |
| Supply Ability: | 100 kilometer/ day |
| Payment Type: | L/C,T/T,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | CE/ SAA/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |
Electrical industry gird for higher "house power"...with stabilizer to lift by 15° C the rated temperature of building wire vinyl insulation，
Among them, H05V-R / H07V-R wires are widely used indoors, cable ducts and industrial plants or conversion stations, underground installations,
and can be used for switchboards and switchboards or equipment that requires more strands.These cables and single core wire are used for general purpose, as building wire for power, lighting wire and control cable to electrical appliances, suitable for use in conduit and for fixed, protected installation.
H05V-U / H07V-U /H05V-R / H07V-R H05V-R H07V-R NYAF Single Core PVC Insulated Building Wire
CHARACTERISTICS:
Voltage Rating: Uo/U H05V-R: 300/500V, H07V-R: 450/750V
Temperature Rating:
Fixed: -5°C to +70°C
Minimum Bending Radius
Fixed: 6 x overall diameter
CONSTRUCTION:
Conductor:
Class 2 Plain annealed copper wires, solid or stranded
Insulation:PVC (Polyvinyl Chloride)
Insulation Colour:
Red Black Blue Orange Yellow White Green/Yellow Grey Brown
