Waterproof IP65 Security checking Gate UZ800 Walk

Waterproof IP65 Security checking Gate UZ800 Walk through metal detector with 33 zones High Sensitivity

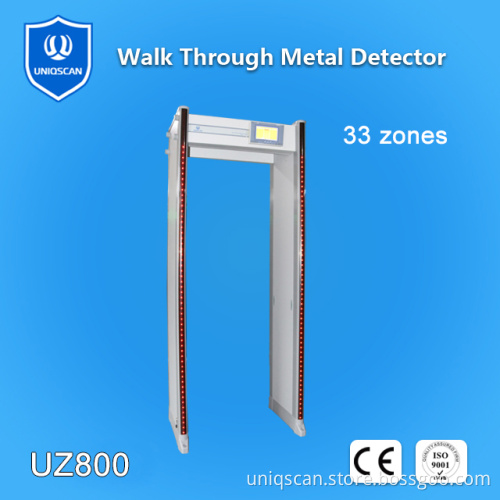

WALK THROUGH METAL DETECTOR

MODEL:UZ800

33 zones

Parameters

Power Supply:AC85V-264V / 47.5-60Hz

Power: <15W

Working temperature:-20℃--+50℃

Waterproof can be used outside

Passage size: 2050mm(H)*760mm(W)*600mm(D)

Gross weight: 65KG

Characteristic & Function

Ø  33 detecting zones, Simultaneous alarm from multi- zones;

Ø  Sensitivity adjustable: Each zone has 300 sensitivity level

Ø  5.7 inch color LCD screen

Ø  Infrared remote control

Ø  Using high density fireproof material

Ø  Automatically count passengers and alarm times

Ø  IN / OUT counter: bi-directional counter

Ø  High sensitivity: Ferrous/ non-ferrous /Alloy can be detected

Ø  30 preset programs for security applications

Ø  Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.

Ø  100 frequencies for option. To work with neighbouring gates at 40cm

Ø  Sound & LED alarm: Two Sides LED indicator easily show where the metal is.

Ø  Detecting speed: up to 100 passenger/ min.

Ø  Power save: Automatically power OFF if no passengers in 5 mins. Once pass through the gate, it will automatic working.

Ø  Password protection, only the authorized person can operate.

Ø  Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.

Ø  Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Ø  Sensitivity Test piece: One yuan Coin, omnidirectional detection

Ø  Network support

Ø  Can be customized 45 zones

Ø  4 hours backup battery (Option)

Application

Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc
