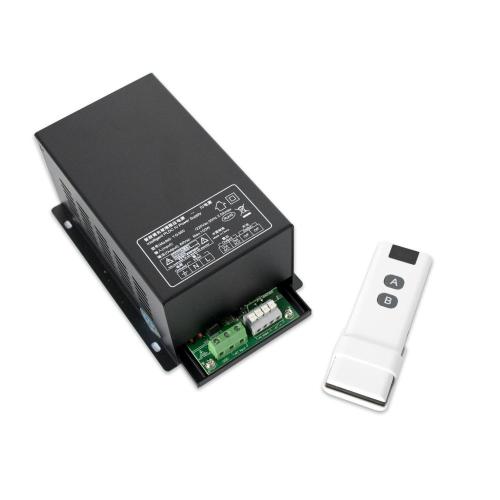

300w Transformer PDLC switchable glass driver
-
$45.001-49 Piece/Pieces
-
$40.0050-99 Piece/Pieces
-
$35.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- ShenZhen Shekou port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 999999 sets per Month |
| Supply Ability: | 999999 sets per Month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | FOB,CIF,EXW,DDP,DDU,Express Delivery |
| Certificate: | CE,ROHS,SGS,ISO9001 |
| HS Code: | 9013809000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | ShenZhen Shekou port |
Product Detail
Switch input:Connects to switch control botton.
Output:Connects to glass,ingore the polarity.
Input:Connects to 220V/110V AC,ingore the polarity.
Ground lead:Connects to ground.
Smart Glass & PDLC Film Power Supply
*Program control design:Develop core technologies independently
*Safety:over voltage,over current,short circuit and other multiple protection
*Practical and beautiful, 300w Transformer PDLC switchable glass driver.
*On-board pressing connection mode:convection and heat dissipation,bilateral positioning.
*Certification:refer to national safety EMC standard design.
Intelligent Film Power Supply
Product Parameters
|
Specification of YuGuang Transformer(30W/50W/100W/200W/300W/500W) |
||
| ITEM | SPECIFICATION | |
| Input Voltage |
AC 220V or AC110v |
|
| Output Voltage | AC 60V | |
| Frequency | 50-60Hz | |
| Output Power | 30W~1000W | |
| Output Current | 0.01A~20A | |
| Rated Power | 6-8w/square meters | |
| Ambient Temperature | -20~+60°C | |
| Ambient Humidity | >90%RH | |
| Power Consumption | 6~8w/square meters | |
| Isolation Voltage | AC 1800v 1min | |
| Insulation Resistance | 20MΩ | |
| Application | Smart glass & Smart film | |
| Features |
Overcurrent projection/Overvoltage projection/Overheat projection/Moistureproof/Fireproof |
|
| Standby Mode | Low voltage control high voltage,able to be long-term Standby Mode | |
| Control Mode |
Button Control/Remote Control/App Control/Radar Control/Infrared Control /Sound Control/Light Sending |
|
| Unconventional Type | Dimming/Flicker/Gradient | |
| Warranty | 2 years | |
| Working Life |
≥15 years |
|
Strong current control SWC-001 Weak current control WWC-001
Wi-Fi+wire control WIFI-001
Remote touch RT-001
Transformer Power Supply
Application
300w Transformer PDLC switchable glass driver
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can
be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure General Transformer Power Supply.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen Switching Power Supply.
