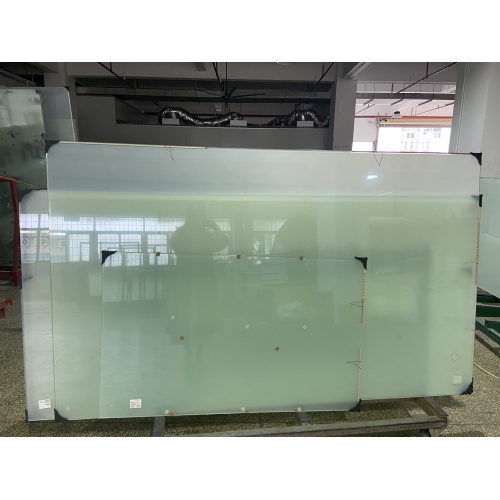

13.9mm Tempered Clear Switchable Smart Glass With CE
- Min. Order:
- 5 Square Meter
- Min. Order:
- 5 Square Meter
- Transportation:
- Express, Air, Ocean, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000000 square meters per mont |
| Supply Ability: | 999999 square meters per month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW,Express Delivery,FOB,CIF,DDU,DDP |
| Certificate: | CE,SGS,IS9001,ROHS |
| HS Code: | 7007290000 |
| Transportation: | Express,Air,Ocean,Land |
| Port: | Shenzhen |
Archiect's Wise Choice --- Smart Glass
Switchable glass or PDLC Smart Glass is a revolutionary technology which changes transparency at the click of a button. The electric switch controls the transparency of the glass from clear to translucent as per the requirement of the user. An important purpose it serves is to provide optimal privacy to the user and get rid of the outdated alternatives available in the market. It also features properties of heat and sound transmission, resulting in indoor climates suitable to your needs.
How Does it Work?
Clear Switchable Smart Glass works on the principle of Polymer Dispersed Liquid Crystal (PDLC) that is similar to an LCD. There exists a ‘smart film’ which is made up of liquid crystals in a polymer base, controlled using voltage charge. These crystals are enclosed by electrically conductive coating. This film is surrounded by sheets of glass from both sides, bound together under high pressure and temperature to form a single unit of smart glass.
In a normal state, these particles are scattered and when the light hits the glass, it is thrown in all directions by these scattered particles; the glass appears to be opaque or milky white in this case. On the contrary, when you pass an electric charge through the glass, these crystal particles align themselves into a symmetrical line. Now when the light hits these particles, it passes through easily; the glass appears clear and translucent in this case.
A lower electric charge would only result in a few liquid crystals aligning into a straight line, and a higher electric charge would result in an increasing number of liquid crystals forming symmetric patterns. This is how you can control the opacity or transparency of the smart glass by adjusting the amount of electric charge running through it.
The science behind the magic
When the small electrical supply is switched on, Liquid Crystal Molecules align and incident light passes through
-- Smart Glass instantly clears.
When the power is switched off, Liquid Crystal molecules are randomly oriented, scattering light
-- PDLC Smart Glass becomes opaque (frosted, private).
Please contact us now to get Free Smart Glass Sample !
WhatsApp: +86 13510271971 Grace
Product Details
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
5-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-90°C |
||
|
Service Times |
Power on |
>15 years |
|
|
Switching Times |
|
>2 millions |
|
Application
Privacy in an instant!
A click to change the glass transparency!
Factory
Make Busbar On Smart Film
Smart Film Rolls
Goods Package
FAQ
1. Are you a manufacturer or trading company?
2. Does smart film block harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
3. Is smart film energy efficient?
Yes, it's a green product that only consumes 5-8 W/㎡.
4. Can customers install Smart Film by themselves?
Yes, we offer a complete installation kit as well as instruction video and document. We provide technical support online to make sure new clients can finish their project perfectly.
5. What is the difference between self-adhesive smart film and non-adhesive smart film?
Self-adhesive smart film can be applied onto the existing glass directly. Non-adhesive smart film is laminated between 2 pieces of tempered glasses to achieve laminated smart glass.
6. Do you offer smart glass?
Yes. Self-adhesive smart fim, non-adhesive smart film, smart glass, LED glass.
7. Can you project on smart film/glass?
Yes, smart film and smart glass can be used as a rear projection screen.
