Digital Push Pull Force Gauge EFGE

With compact size, and high accuracy, the digital push pull force meter is easy to operate and handy to carry out. The digital push-pull force gauge, also called the digital push-pull force meter, can be widely applied in electron, high & low voltage electrical appliances, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and other industries for testing of pull or push load test, insertion force or pull and destructive experience.

EFGE digital push-pull force meters are high-precision push-pull force test instruments. The electronic push-pull force gauge adopts an aluminum alloy shell, and the whole machine is light in weight. It is especially suitable for hand-held measurement. It has built-in high-precision sensors and mechanical overload.

The internal sampling frequency of this digital pull force gauge is 1000HZ, the software has tracking, peak, and preset modes, which can be applied to the brake test of the product. Compared with the compression force gauge, the insertion force test and other force tests, up to 500 measurement data storage.

Digital Push Pull Force Gauge EFGE Features

Durable metal case

Reverse display setting

Mechanical overload protection

Calibration certificate Included

Charger with US/EUR/UK Plugs selectable

With the USB or RS232 communication interface, this digital push-pull gauge can easily communicate with PLC

Accuracy: ± 0.3% FS

Sampling Rate: 1KHz

Digital Push Pull Force Meter EFGE Specifications
Accuracy ± 0.3% F.S.
Selectable Units N、gf、 kgf、 of and bf
Display 160*128 dot matrix LCD(2.8 inches) with LED Backlight
Overload Capacity 150% of F.S. (LCD blinks beyond 110%)
Overload Protection Overload Protection Mechanism to prevent to be damaged
Measurement Mode Track 、Peak、Preset Peak
Data Sampling Rate 1KHz
Display Update Rate 10 times/second
Memory 500 data
SetPoint Programmable high and low limits
Battery Indicator The display flashes the battery icon when the battery is low
Power 3.6VDC 400mAH Ni-Mh rechargeable batteries
Battery Life Approx. 7 hours per charge
Charger / Adaptor Universal USB/BM charger, Input:110~240VAC
Temperature Effects <0.03% FS per °C
Communication USB or RS-232
Software Free software for USB communication
Outputs RS-232, "Within" set point output， "Under or over" set point output
Operating environment Temperature: -10 to 40°C
Relative Humidity:  20 to 80%
Storage environment Temperature: -20 to +50°C
Relative Humidity:  5 to 90%
Dimensions 150*72*33mm
Weight: 0.45 kg (1 lb)
Accessories AC adapter/charger，6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Options Mini-printer, Measuring Adapter, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.



Models Capacity/Resolution
N kgf lbf Ozf gf
EFG10E 10/0.01 1/0.001 2.2/0.001 35/0.01 1000/1
EFG50E 50/0.01 5/0.001 11/0.01 180/0.1 5000/1
EFG100E 100/0.1 10/0.01 22/0.01 350/0.1 -
EFG500E 500/0.1 50/0.01 110/0.1 1800/1 -
EFG1000E 1000/1 100/0.01 220/0.1 3500/1 -

How to Use Push-Pull gauge?

Choose model

This pull-push meter series has a variety of models can be selected. Different models corresponde to different range and resolution. Select the appropriate model based on practical needs before use. DO NOT exceed the capacity of the gauge, or it may damage the force gauge forever.

Choose measuring heads

In order to complete the test work conveniently, this pull force meter is equipped with a variety of measuring heads(adapters). Select the appropriate measuring heads according to the actual need.


Push-Pull Gauge Calibration Procedure
Because of the sensor material performance or the influence of external factors, there may be errors in a certain range after a period of time use. As one of the leading measuring instruments manufacturers in China, Mikrometry suggests you should send the digital push-pull gauge to a specialized testing organization for calibration.

Whereas, if you have some standard force weights or the other standard load and some test stand, you may calibrate the push meter also.

Mount the push-pull meter.

Remove the tare by use of the zero key.

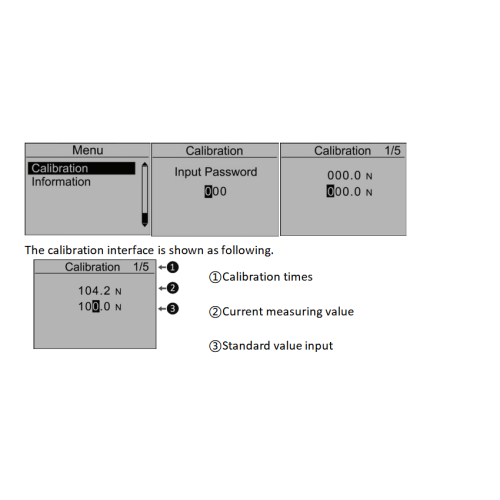

Enter the Calibration interface, Show the following.

Push-Pull Gauge Calibration Procedure

Load a standard force. Now the value in the standard input area is just equal to the current measured value. Wait a moment for the force stability.

Touch the zero key and peak key to input the standard force value.

Touch to enter the next calibration. Touch can interrupt the calibration. When the 5 times calibration had been finished or interrupted, a confirm window will pop up to ask for save or not save the calibration.

Touch the zero key or peak key to select, then press the menu key.

If "YES" is selected, "Calibrate complete!" is displayed.

NOTE:

① Set the unit of the force to the unit used in calibration previously.

② Ensure that the tare weight of the attachment has been removed before calibration.

③ You can do any point or points calibration from 1 to 5 point. We recommend 5 points calibration.

Push Pull Force Tester Gauge Digital Close-Ups

As one of measuring equipment manufacturers, we will do our best to meet all the needs of customers.

More types of digital hardness meter, please visit our website.
