1.12 Inch Full Color TTF LCD Screen
- Min. Order:
- 1
- Min. Order:
- 1
Your message must be between 20 to 2000 characters
Contact Now| LCD Size: 1.12inch(Diagonal) | Display Mode: Normally Black |
| Resolution: 50(H)RGB X 160(V) | Dot Pitch: 0.2184 (H) X 0.2184(V) Um |
| Active Area: 8.49(H) X 27.17 (V) Mm | Module Size: 10.8(H) X 32.18(V) X2.11(D) Mm |
| Color Arrangement: RGB Vertical Stripe | Interface: SPI4 LINE |
| Drive IC: GC9D01 | Luminance(cd/m²): 300 (TYP) |
| Viewing Direction: All View | Backlight: 1 White LED |
| Operating Temp.: -20℃~ + 70℃ | Storage Temp.: -30℃~+ 80℃ |
| Weight: 1.1g |
Key Specifications/ Special Features:
1. General Description
Description

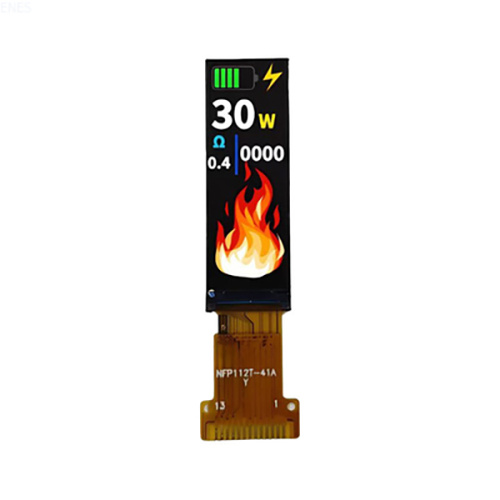

T112KTBIG41 is a 50RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

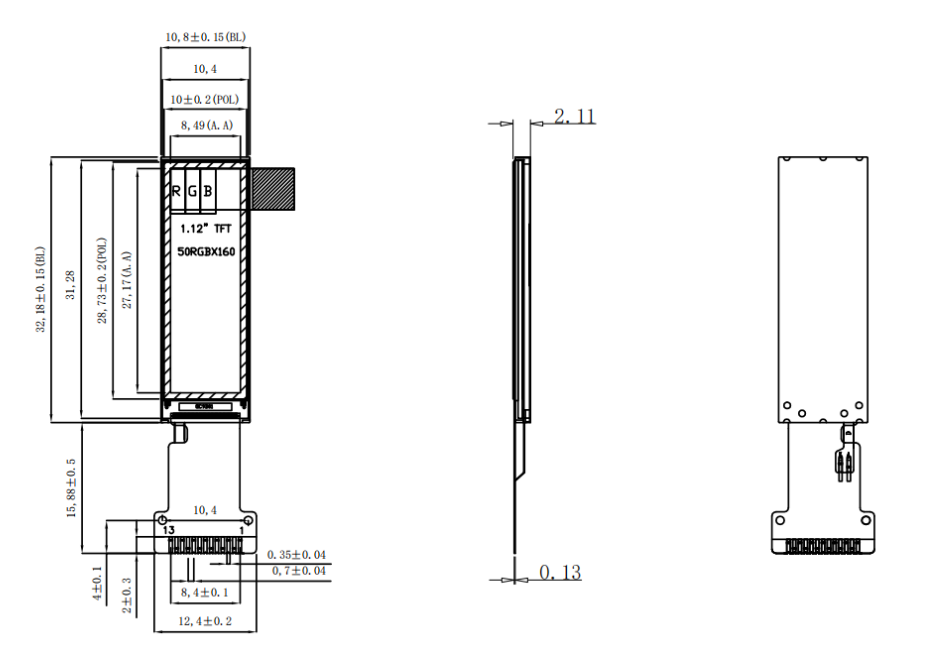

2. Mechanical Drawing
ESEN T112KTBIG41 1.12-Inch TFT LCD Display/Monitor: Precision and Versatility for Compact Applications
In the realm of compact display solutions, the ESEN T112KTBIG41 1.12-Inch TFT LCD Display sets a new benchmark for performance and adaptability. Designed in Shenzhen, China, and backed by ISO9001/ISO14001 certifications, this TFT LCD Monitor delivers exceptional clarity in a miniature form factor. With a diagonal size of 1.12 inches and an ultra-slim module size of 10.8mm x 32.18mm x 2.11mm, it is engineered for space-constrained applications like wearables, IoT devices, and portable medical equipment. The display’s 50(H)RGB x 160(V) resolution and 0.2184um dot pitch ensure sharp, detailed visuals, while its normally black mode enhances contrast for improved readability in bright environments. Driven by the GC9D01 IC and SPI4-LINE interface, it integrates seamlessly with low-power systems, operating reliably across temperatures from -20℃ to +70℃.
Superior Visual Performance and Durability
The ESEN TFT Monitor leverages advanced A-Si TFT technology to achieve a luminance of 300 cd/m², making it suitable for both indoor and outdoor use. Its all-view direction eliminates visual distortion, ensuring consistent image quality from any angle—ideal for devices requiring multi-user interaction. The RGB vertical stripe color arrangement enhances color accuracy, while the 1 white LED backlight provides energy-efficient illumination with a lifespan exceeding 50,000 hours. Weighing just 1.1g, this display is perfect for lightweight designs without compromising durability. Storage flexibility (up to -30℃ to +80℃) further ensures resilience in harsh conditions, meeting industrial and automotive standards.
Tailored Solutions for Global Clients
ESEN’s T112KTBIG41 TFT LCD Display supports extensive customization, including FPC adjustments, interface optimizations, and bespoke packaging. Despite its compact size, it accommodates capacitive/resistive touch panels (CTP/RTP) for interactive applications. With a minimum order quantity of 1,000 units and scalable monthly production of 300,000 units, we cater to startups and enterprises alike. Orders ship globally within 2–4 weeks, securely packaged to prevent damage during transit. Competitive pricing (available upon inquiry) and flexible payment terms (L/C, T/T) streamline cross-border transactions, ensuring a hassle-free procurement experience.
Why Partner with ESEN?
As a trusted name in TFT LCD Monitor innovation, ESEN combines cutting-edge engineering with customer-centric service. Our displays undergo rigorous quality checks to guarantee longevity and performance, even in demanding environments. Whether you’re developing smartwatches, handheld scanners, or industrial sensors, the T112KTBIG41 offers unmatched precision and reliability. Contact us today to discuss your project—we’re committed to turning your vision into reality!
Note: Specifications may vary slightly based on customization requests. Lead times adjust for specialized configurations.
