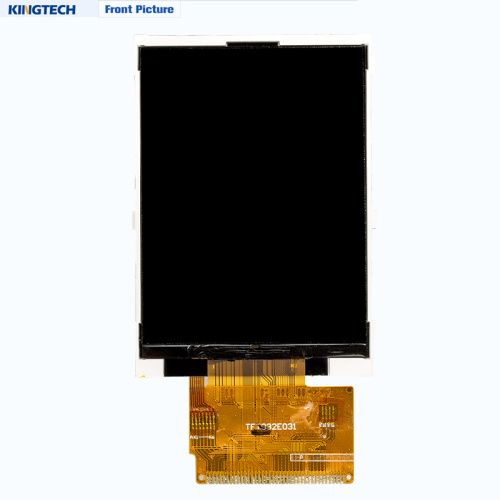

3.2 Inch 240x320 MPU 8/16bit Interface LCD Display

Kingtech 3.2 tft lcd module display is our most leading product.

The 3.2inch 6 O'clock TN display has existing resistive touch, we can custom capacitive touch according to customer requirements. The 3.2inch TN display can support the MCU interface.

Moreover, most of the customers used it for medical devices, handheld equipment, and POS machine.  As a LCD module manufacturer, we are able to update types of standard LCD dispaly and offer perfect quality of products.

Features of 3.2 inch tft lcd module

240x320 /QVGA resolutions

Support MCU 8bit and 16bit interfaces

Small / Tiny display

Support resistive touch

Can custom TFT capacitive touchscreen

Specification of 3.2 Inch 240x320 MPU 8/16bit Interface LCD Display
Item 3.2inch TFT module display
Model No PV03200DX39B
Resolution 240*320
Outline Dimension 77.6(L)*55.04(W)*2.5(T)
Active Area(mm) 64.8 (L)*48.6(W)
Interface MCU 8/16BIT
Viewing Angle 6 O'clock
Driving IC ILI9341V
Display Mode Transmissive / Normally White
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Brightness 230nits
Touchscreen Touchscreen available

Application of 3.2 inch tft display

The 3.2inch TFT LCD display can be used for medical devices, industrial control, handheld equipment, POS machine, smart home, and E-Bike.

The 3.2 inch lcd display can be used for medical devices, industrial control, handheld equipment, POS machine, smart home, and E-Bike.
If you are looking for a reliable display manufacturer, don't hesitate to contact us!
