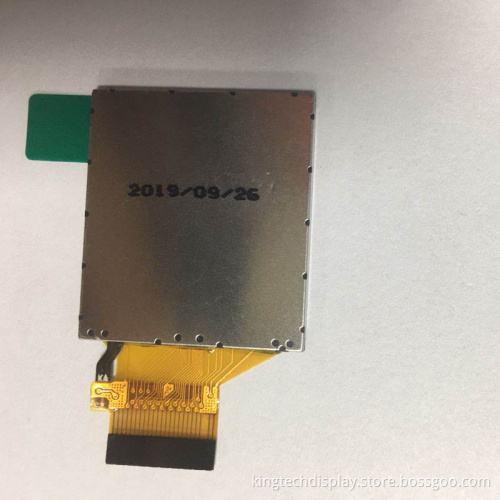

All View Angle 1.3 Inch 240x240 Square TFT LCD Screen

Kingtech 1.3inch 240x240 LCD module is a small size display. It’s IPS/full/wide/all type and this display supports MCU and SPI interfaces.

The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD module according to customer requirements. This 1.3 inch tft lcd, 1.3 inch lcd can be used for smartwatch.

Features of All View Angle 1.3 Inch 240x240 Square TFT Custom LCD Screen

240x240 resolution

Square display

Can custom capacitive and TFT resistive touchscreen

MCU and SPI interfaces

Free/full/wide viewing angle

IPS TFT display

Application is for a smartwatch

Specification of All View Angle 1.3 Inch 240x240 Square TFT Display
Item 1.3inch IPS square TFT display
Model No PV013004AR24E
Resolution 240x240
Outline Dimension 26.16(W)x29.22(H)x1.6(T)
Active Area(mm) 23.40(W)x23.40(H)
Interface 8bit parallel & SPI
Viewing Angle All
Driving IC ST7789
Display Mode Transmission/Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Brightness 350nits
Touch panel Can custom resistive and capacitive touch panel

Application of All View Angle 1.3 Inch 240x240 Square TFT LCD Screen

The 1.3inch 240x240 round TFT IPS LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and smartwatch.

As a custom lcd display manufacturer, we will provide more sorts of related products for sale, anything you need, please contact us.
