4 layer pcb low cost 94VO circuit board

What is the manufacturing cost of a multilayer PCB?

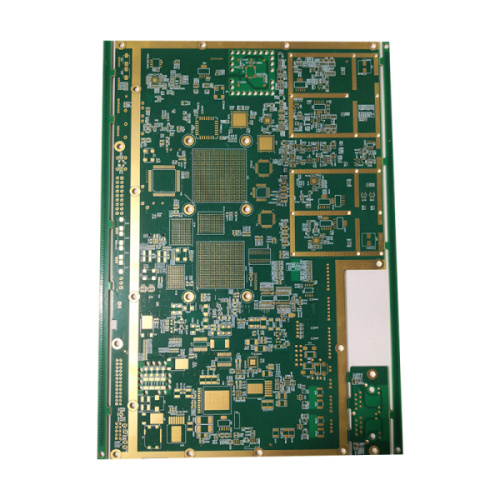

 Multilayer PCB circuit board
Printed circuit boards have come a long way in recent years. Although these circuit boards have existed for more than 100 years, recent technological advances have made these circuit boards more efficient for all types of businesses dealing with electronic components. Multi-layer PCB is considered to be the latest technology of printed circuit boards. Small and medium-sized companies looking for the latest technology in these products, but do not want to end up paying a large amount of money or order in large quantities, they can look for a company that can provide a circuit board with a reasonable price.

In addition to providing this technology for small and medium-sized enterprises, companies that manufacture multilayer PCBs can also help entrepreneurs. Because these companies mass-produce circuit boards, the traditional circuit board concept, entrepreneurs can get the applications they want on their prototypes to meet the needs of their products.
There are several positive aspects to using a company that specializes in designing multilayer PCBs for small and medium-sized companies. First, the quantity you need to buy is less than the quantity you need to buy from a large manufacturer.

Secondly, you can get a prototype designed according to your specific specifications, and use a company that cooperates with you to ensure that you get the products you need and make your products run smoothly. Using manufacturers who create multilayer printed circuit boards for small and medium-sized enterprises can provide you with the next best product handmade without having to pay the cost of handmade products. By using a company that produces multilayer printed circuit boards for small and medium-sized companies, your business can obtain the high technology of multilayer PCBs, as well as fast delivery times and affordable costs.
What is the manufacturing cost of a multilayer PCB?
Multi-layer PCB manufacturing cost is not high process anymore. The technology has made significant progress, and as more and more companies begin to provide printing, prices have fallen.
Multi-layer PCB prototype design
As an example, let's use a simple 2-by 4-inch 4-layer circuit board. We assume it is suitable for home electronics-so no special materials are needed. There is usually a first installation fee, which is necessary for the engineer to work and adjust the Gerber file and set up the printer. Despite the work involved, the installation fee rarely exceeds $200. For complex layouts, it will still be higher.

The unit price depends on the material used, the necessity of drilling and passage, and other factors. Similar to book publishing and other printing jobs, the more you order, the cheaper the price. The cost per unit of a test batch of 100 boards may exceed $2. If you order more than 10,000, your unit price is close to one dollar. High-temperature materials usually double the unit price, but when you need it, you only need to use it. Saving material costs may affect the success of the product.
The cheapest is not always the best!
To continue talking about success, you must also make sure to choose a multi-layer PCB manufacturing company with a good track record. Although many start-up entrepreneurs and product inventors try to save money and send their boards to Asian countries, they rarely notice that the quality provided by local companies is much better. The price difference is not large, because the multilayer PCB manufacturing process is almost completely automated and the human resources involved are quite low. There are many electronics companies in the United States, Germany, the United Kingdom and other European countries. The best guide to finding a reliable partner may be the Yellow Pages. Find a local company, you will have more control over the final result, and you will save a lot of shipping time. If you find a company via the Internet, please look up the correct contact information on its website and always compare that address with the Who is admin mailing address for a specific domain name. Ideally, they should match or at least be in the same country.

Since so many websites and electronic companies spring up every month, it is easy to become fraud or low quality
Alignment control in multilayer PCB
As gadgets are getting smaller and smaller-determined by the ergonomic features that consumers expect-we require more components per square inch than before. Circuit assembly becomes a challenge. Although it is relatively easy to design electronic schemes using modern computer software and print with advanced etching techniques, we may encounter problems when the layers must be brought together.
If the copper plates are not perfectly aligned, the entire system will not work because current will not flow between the plates or the wrong points will be contacted. The circuit will fail, reducing all design work to zero.

Obtaining the prototype logo is an important step towards a quality product. Unfortunately, many manufacturers try to complete this important stage of production as quickly as possible. The above methods are not cheap, but they are essential.
Every electronics company starting or trying to improve quality control must consider what to use to make sure their products stand out. In the electronics industry, competition is fierce in the long run, and the best features always win.
