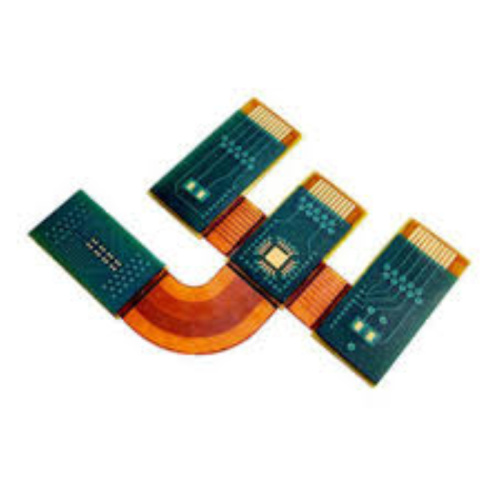

6 Layers Green Rigid-Flex Immersion Gold Pcb

What is rigid flex PCB?

Rigid-Flex Printed Circuit Board is a circuit board that combines flexible and rigid board technology in the application. Most rigid flexible boards are composed of multilayer flexible circuit boards (like 6 layer Rigid-flex Immersion Gold PCB)that are externally and/or internally connected to one or more rigid PCB boards, depending on the design of the application. The flexible substrate is designed to be in a constant bending state, and usually forms a bending curve during PCBA manufacturing or installation. Rigid-Flex design is more challenging than typical rigid board environment design, because these boards are designed in 3D space, which also provides higher space efficiency. By being able to design in three dimensions, rigid flexible designers can twist, fold and roll the flexible board substrate to achieve the shape required for the final application packaging.
Rigid-Flex Board  provides a wide range of applications, from military weapons and aerospace systems to mobile phones and digital cameras. More and more Flex High Quality PCB Flame resistant PCB manufacturing has been used in medical devices such as pacemakers because of their space and weight reduction capabilities. The same advantages of Characteristic impedance PCB can be applied to military weapons and weapon control systems.
In consumer products, Custom Flexible PCB fabrication not only maximizes space and weight, but also greatly improves reliability, eliminating many requirements for solder joints and fragile and fragile wiring that is prone to connection problems. These are just a few examples, but Flex  High Quality PCB  Fabrication can be used in almost all advanced electrical applications, including test equipment, tools, and automobiles.
