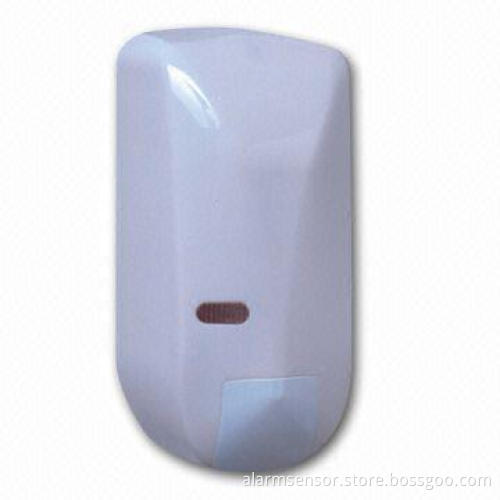

Industrial Grade Outdoor Motion Detector

Provides military, government, commercial and industrial-grade the highest standard in intrusion sensors

• Ideal solutions to your security and should be primary component in any alarm system
• Original dual microwave MRD-PLUS motion recognition technology
• Adopt innovative phased array radar technology (displacement identification technology) to analyze and recognize shape and relative displacement speed of any intruding objects
• Can accurately recognize swing a plant, swing wet clothes, interference objects and moving human body, and has immunity of tempest, heavy snow and sand storm to prevent false alarms
• Original ATS mode, after start ATS mode, sensor can run normally even at -55 degrees Celsius
• AMS anti-mask technology
• When objects shield, will not interfere detection sensitivity and range
• No blind temperature zone: change of surrounding temperature will not affect detection range at all
• White light immunity: free from any light
• Input voltage: 9.5 to 15V DC, 14mAh
• Microwave frequency: meet FCC standard by 10.525 and 10.325GHz
• Water-resistant structure with IP55 standard, 4mm outdoor professional ABS cover is vandal-proof and anti-oxidation
• Alarm output: solid-state relay NC contacts, 35V DC, 150mAh (maximum)
• Tamper output: NC 35V AC, 500mAh (maximum)
• White light immunity: free from any light
• Detection ranges: 15 x 15m
• Anti-mask ranges: 0 to 15m
• Working temperatures: -55 to 65 degrees Celsius
• Relative humidity: 0 to 99% RH
• Working pressure: 430 to 1,350 hectopascal
• Dimensions: 152 x 75 x 55mm
• Weight: 150g
