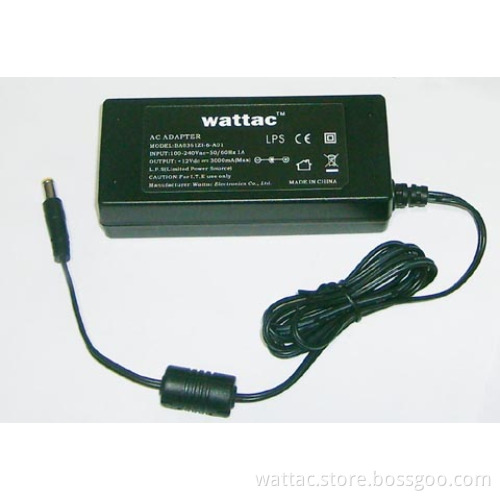

AC adapter BA0361ZI-120-A01

Application: External Hard Drive Model No.: BA0361ZI-120-A01 Description: Input Condition AC100～240V 50/60 Hz 1A Max ac2pins Input Rated Voltage 100Vac～240Vac Input Voltage Range 90Vac～264Vac Input Rated Frequency 50/60Hz Input Frequency Range 47Hz～63Hz Input Current 1A Max Input Inrush Current 50A Max Input No Load Power Consumption 0.5W Max At 115Vac/230Vac Efficiency 80% Min Rated Output Voltage & Current 12V/3A Output Line Regulation ±3% Output Load Regulation ±5% Output Over Shoot 10% Max Output Ripple And Noise 1% Max Output Rising Time 20ms Max At 115Vac Output Hold up Time 8ms Min At 230Vac Protection OCP OVP SCP OPP Dielectric Withstand Voltage 3KV 5mA 60s Leakage Current 0.25 mA At 230Vac DC Plug Specification 5.5X2.1X11 mm Dimension 50×115×31.5 mm Operating Temperature Range 0℃～40℃ Storage Temperature Range -20℃～+85℃
