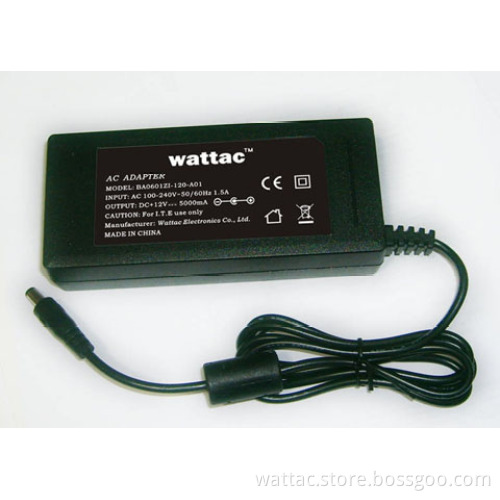

AC adapter BA0601ZI-120-A01

Application: External Hard Drive Model No.: BA0601ZI-120-A01 Description: Input Condition AC100～240V 50/60 Hz 1.5A Max ac2pins Input Rated Voltage 100Vac～240Vac Input Voltage Range 90Vac～264Vac Input Rated Frequency 50/60Hz Input Frequency Range 47Hz～63Hz Input Current 1.5A Max Input Inrush Current 80A Max Input No Load Power Consumption 0.5W Max At 115Vac/230Vac Efficiency 80% Min Rated Output Voltage & Current 12V/5A Output Line Regulation ±1% Output Load Regulation ±5% Output Over Shoot 10% Max Output Ripple And Noise 1% Max Output Rising Time 20ms Max At 115Vac Output Hold up Time 8 ms Min At 230Vac Protection OCP OVP SCP OPP Dielectric Withstand Voltage 3KV 5mA 60s Leakage Current 0.25 mA At 230Vac DC Plug Specification 5.5X2.5X11 mm Dimension 58×132×32 mm Operating Temperature Range 0℃～40℃ Storage Temperature Range -20℃～+85℃
