Professional Car GPS Tracker GST301

Brief Introduction

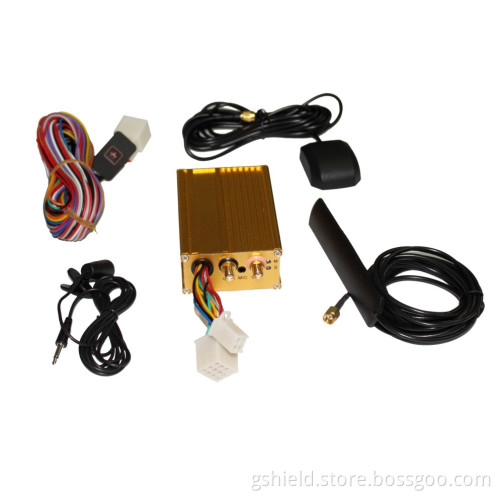

GST301 which comes in a compact design is a powerful real time fleet management and vehicle tracking system using high sensitivity GPS and wireless GSM and GPRS communication. This self-contained and autonomous tracking device including GSM module, GPS receiver, Li-ion battery and Multi analog input is able to be used as observing the location of vehicle ,control window/door/fuel/engine ,detect window/door/fuel/engine state, voice wiretapping, store position info ,detecting  temperature ,detecting fuel costing.

Software Features
1),SMS mode,GPRS mode and SMS+GPRS mode
2),Position request via SMS or GPRS
3),Data logging capacity: up to max 144,000 point
4), Store in GSM blind area and forward  when GSM signal re-establish
5),Mileage report
6),Upload/download settings, locations, and update firmware via GPRS
7),Configurable GEO-fencing
8),Configurable 2 analog input for status detection
9),Configurable 5 discrete input for status detection
10),Configurable 5 discrete output for remote control of vehicle

Hardware Features
1),GSM and GPRS core:
         Simcom:SIM300D:900-1800-1900MHz
         Simcom:SIM340D:850-900-1800-1900MHz
         GSM/GPRS services: Data, SMS or GPRS class B, class 10,TCP UDP,IP
2),Physical characteristics
         Dimensions(L*W*H): 104*73*29.8mm
         Weight:approx:160g(including build-in battery)
3),Temperature range
         Operation:-20 Celsius degree to +80 Celsius degree
4),Power sources
         Input voltage:10~32 Volt DC regulated Max 2A
         Rechargeable Li-ion battery 1800mAh
5),Antenna
         External GSM and GPRS antenna
         External GPS antenna
         Indication:2 LED indicator for GSM,GPRS and GPS status

More detail about this item,please contact us for corresponding manual.
