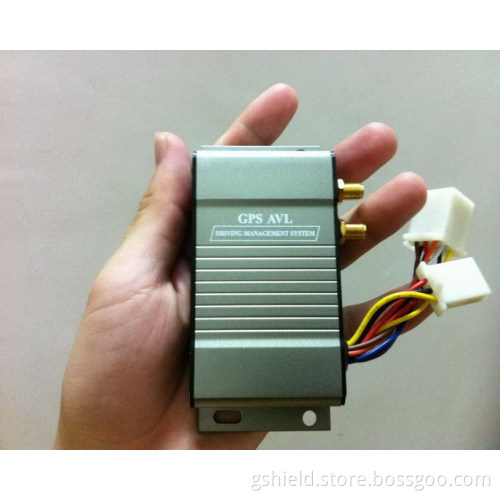

Intelligent 2nd GPS Car Vehicle Tracker GST201X
  • Intelligent 2nd GPS Car Vehicle Tracker GST201X
  • Intelligent 2nd GPS Car Vehicle Tracker GST201X
  • Intelligent 2nd GPS Car Vehicle Tracker GST201X
Intelligent 2nd GPS Car Vehicle Tracker GST201X
Intelligent 2nd GPS Car Vehicle Tracker GST201X
Intelligent 2nd GPS Car Vehicle Tracker GST201X

Intelligent 2nd GPS Car Vehicle Tracker GST201X

Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Certificate: CE,RoHS
Product Description
Product Description

Brife Introduction
GST201X is GPRS-GSM Model GPS intelligent terminal (Mobile user terminals) Built-industrial level GPRS-GSM communication module and the newest SIRF-Star III High-sensitivity GPS receiver module positioning, adopts GPRS and SMS Dual-mode communication, terminal run stable and reliable, Function-wide, multi-interface, the terminal can be applied to concrete, rental, logistics, public transport, bus and other fields, but also according to different industries, tailored to different users.

Main Features
1, Terminal dimensions small, waterproof, easy installation;
2, GPS positioning accuracy, dynamic positioning deviation is less than 5 meters;
3, Support for GSM SMS and voice function under, GPRS state of UCP or TCP protocol communications;
4, Support for GPS Data uploaded regularly and named functions;
5, Support for silent features;
6, Remote monitoring capabilities to support authorized;
7, Support the acquisition and high voltage, low voltage protection;
8, Support 3-way high-, low level signal detection;
9, Support blind transfer function up;
10, Car remote lock function;
11, Support the emergency alarm;
12, Support power-off alarm function (built-in backup battery);
13, Support for high-pressure alarm and under voltage alarm;
14, Support speed alarm function;
15, Support the parking alarm;
16, Support the illegal open,illegal start alarm;
17, Support the fatigue driving function;
18, Statistical functions to support mileage;
19, SMS alarm notification;
20, Built-in 16MB Flash, can save 30 thousand blind track data.

Specifications

Work voltage
8VDC~36VDC
Work current
50mA~160mA
GSM module
Simcom300/340
inside contain frequency GSM 900-1800
inside contain frequency GSM 850-900-1800-1900Mhz (can be customized)
Communication protocol
UDP or TCP(can be customized)
GPS module
GPS JRC 595
GPS sensitivity
-159dBm
GPS frequency
L1, 1575.42 MHz
C/A coding
1.023 MHz chip rate
Channels
20 channels examine track
Position accuracy
10 meter, 2D RMS
Speed accuracy
0.1 meter per second
Time accuracy
GPS time synchronization
Default data
WGS-84
Recover
Average 0.1 second
Hot start
Average 1 second
Warm boot
Average 38 second
Cold boot
Average 42 second
Height limit
18,000 meter (60,000 feet) max
Speed limit
515 kilometer per second (1000 knots)max
Acceleration limit
Less than 4g
Work temperature
-20°~70°C
Storage temperature
-30°~85°C
Humidity
5% ~95%  noncondensing
Terminal size
101 mm × 50mm × 24mm
Inside battery
Continuous working no less than 4 hours
LED light
Red: device state; Yellow: GSM module state; Green: GPS module state

Standard Accessories:
Host unit, Power Wires, GPS Antenna, GPRS Antenna, Magic Tape, Warranty Card, Relay, Warranty card receipt, Certification.
