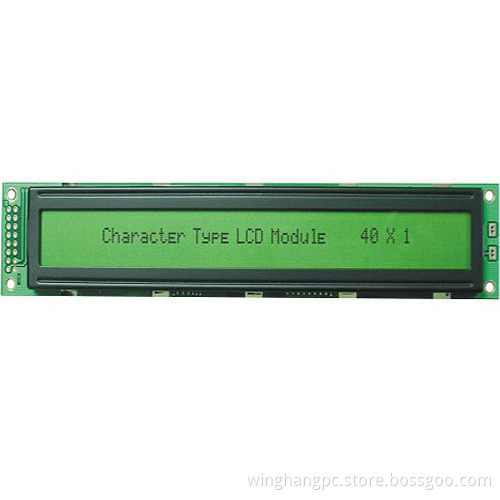

Character LCD Module 40*1 WHPC-013

Character LCD Module(WHPC-013)
WHPC-013 Yellow and Green LED Backlight
Display format: 40*1
LCD type: STN, positive and transmissive
Drive method: 1/16 duty, 1/5 bias
Drive Voltage: +5.0 V
Operating temperature: 0 to +50
Storage temperature: -20 to +70
Driver IC: SPLC78D or equivalent
Backlight type: Yellow-green LED

Module size: (W) 87.0 x (H) 60.0mm
Viewing area: (W)62.0 x (H) 25.6mm
DOT size: (W) 0.55 x (H) 0.55mm
Character size: (W) 2.95x (H) 5.55mm
Customer"s designs are welcomed
Extended temperature and other requirements are also available
