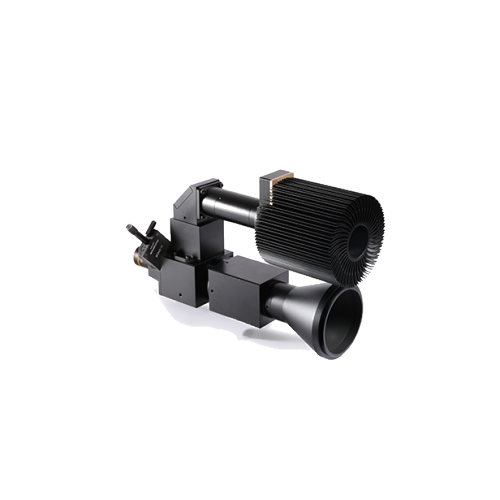

Microscope Objective Lens

Microscope Objective Lens
Suitable for ITO, particle detection, wafer inspection

Infinity optical design for different microscope lenses can match infinity objective lens with a different mag

High-contrast & brightness image solution

Microscope objective design of new modular allows customizing different optical layouts on customers' requests

1x Microscope Objective Lens Specification

Model	Objective Magnification	CCD Max Size	Objective Aperature Diameter	Image Path Spectrum	Light Path Spectrum	Laser Path Spectrum	Lighting Path Mount	Objective Lens Mount
Microscopy Lens XF-VM3-1X-C	1X	4-3	φ12mm	Visible	Visible	/	/8mm point illumination	M26×0.706
Microscopy Lens XF-VM3-1X-N	1X	4-3	φ12mm	Visible	/	/	/	M26×0.706
Microscopy Lens XF-VM3-05X-C	0.5X	2-3	φ12mm	Visible	Visible	/	8mm point illumination	M26×0.706
Microscope Lens XF-VM3-1X-DIC	1X	4-3	φ12mm	Visible	Visible	/	/30W Blue LED	M26×0.706
Microscope Lens XF-VM3-1X-CL	1X	4-3	φ12mm	Visible	Visible	/	/8mm point illumination	Support to objective turret with depth less tham 45mm
Microscope Lens XF-VM3-05X-CL	0.5X	2-3	φ12mm	Visible	Visible	/	/8mm point illumination	Support to objective turret with depth less tham 45mm
Microscopy Lens XF-VM3-D0510	Vertical 0.5X/Horizontal1X	Vertical 2/3	φ12mm	Visible	/	/	8mm point illumination	M26×0.706
Microscopy Lens XF-VM3-LA1X-C1-NIR	1X	1.1	φ12mm	Visible	Visible	800-1200nm	8mm point illumination	M26×0.706
XF-VM3-LA1X-C2-NIR-CL	1X	1.1	φ12mm	Visible	Visible	800-1200nm	8mm point illumination	Support to objective turret with depth less tham 45mm

Different Microscope Objective Lens Types
In general, when it comes to the microscope lens types, we refer to the different magnification and uses of the four most commonly different microscope lenses on composite optical microscopes.

Scan the lens (4x)
The scanning objective is designed for getting bearings right before moving onto the low power lens.

Low-power lens (10 x)
The low-power microscope objective lens usually has 10x or 20x magnification. You can identify it by a yellow stripe around the lens housing. This objective can be very useful for viewing prepared specimens on slides.

High-power lens (40 x)
The high-power microscopy lens is applied for looking at smaller specimens like bacteria and cells that are invisible to the naked eye.

Oil-immersion lens (100 x)
These lenses are called ‘oil immersion lenses’ because you usually need to use them with oil in order to view your specimen.

Microscope Objective Working Distance
In general, the operating microscope objective working distance decreases with magnification and numerical aperture. Nowadays, the popular trend is to produce dry microscope objectives with as long working distances as possible, but this requirement is partly limited by a high numerical aperture that requires high resolution. This usually result in the manufacturers making a compromise between these two parameters.

To provide extensive optical solutions in machine vision optics systems, Canrill Optics, as a custom optical lens manufacturer, has been keeping developing, manufacturing and marketing machine vision telecentric lens since 2009. In 2019 and 2020, Canrill Optics has successfully upgraded the telecentric lens to 4th generation PTL series and developed new series of non-telecentric Canrill lens.
