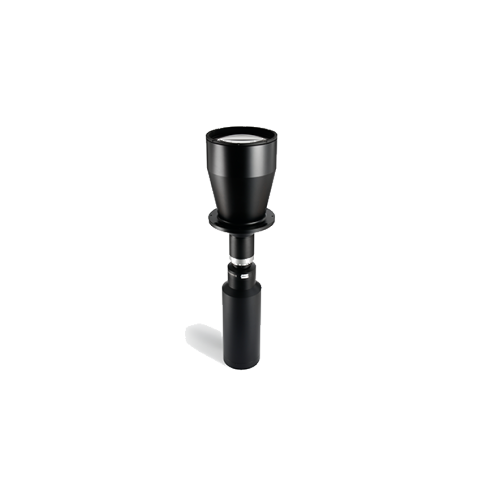

16k Line Scan (82mm) Telecentric Lens
-
$8000.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowSpecially designed for large image circle up to 82mm in length
Suitable for line scan cameras such as 16K x 5μm,16K x 3.5μm,12K x 5μm, 8K x 7μm, etc, and area scan camera such as 155 mega pixels, 151 mega pixels
The adjustable iris of this machine vision telecentric lens series is adopted to balance the DOF and resolution perfectly
Excellent uniformity and little-to-no distortion
Some models support inner L90 steering, saving installation space
16 standard models available, support object FOV from 45mm to 390mm
Long working distance from 120mm to 700mm
M95 Mount, support customized mount
16k Line Scan (82mm) Telecentric Lens Specification
|
Model |
Optical Size |
Diagonal (mm) |
FOV Length (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
Line Scan Camera Lens XF-PTL39082-M95-12-VI |
16k x 5μm |
81.92 |
369 |
1365.3 |
430 |
|
Line Scan Camera Lens XF-PTL35082-M95-12-VI |
16k x 5μm |
81.92 |
331.7 |
1145 |
376 |
|
Line Scan Camera Lens XF-PTL31082-M95-12-VI |
16k x 5μm |
81.92 |
293.6 |
1072.7 |
340 |
|
Line Scan Camera Lens XF-PTL26882-M95-12-VI |
16k x 5μm |
81.92 |
253.6 |
1006.4 |
300 |
|
Line Scan Lens XF-PTL23882-M95-12-VI |
16k x 5μm |
81.92 |
225.7 |
947.8 |
270 |
|
Line Scan Lens XF-PTL19582-M95-12-VI |
16k x 5μm |
81.92 |
184.5 |
799.8 |
222 |
|
Line Scan Lens XF-PTL18282-M95-12-VI |
16k x 5μm |
81.92 |
172.5 |
773.3 |
210 |
|
Line Scan Lens XF-PTL15282-M95-12-VI |
16k x 5μm |
81.92 |
143.7 |
725.4 |
180 |
|
Line Telecentric Scan Lens XF-PTL13782-M95-12-VI |
16k x 5μm |
81.92 |
129.8 |
686.3 |
166 |
|
Line Telecentric Scan Lens XF-PTL12282-M95-12-VI |
16k x 5μm |
81.92 |
115.7 |
678.3 |
166 |
|
Line Telecentric Scan Lens XF-PTL11082-M95-12-VI |
16k x 5μm |
81.92 |
104.4 |
639.6 |
130 |
|
Line Telecentric Scan Lens XF-PTL09282-M95-12-VI |
16k x 5μm |
81.92 |
86.9 |
590.4 |
120 |
|
Line Scan Camera Lens XF-PTL08082-M95-12-VI |
16k x 5μm |
81.92 |
75.9 |
565.7 |
104 |
|
Line Scan Camera Lens XF-PTL06582-M95-12-VI |
16k x 5μm |
81.92 |
61.7 |
531 |
90 |
|
Line Scan Camera Lens XF-PTL05582-M95-12-VI |
16k x 5μm |
81.92 |
52.1 |
515.4 |
79 |
|
Line Scan Camera Lens XF-PTL04582-M95-12-VI |
16k x 5μm |
81.92 |
42.7 |
472.4 |
70 |
