Scodeno Shockproof Drop Resistance Optical Fiber Splicer Fusion Fiber Optic cable Fusion Splicing Machine

$730.00 - $1190.00/Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Productivity:	1000000pcs/Month
Supply Ability:	1000000/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Certificate:	ISO9001,CCC,FCC, CE, RoHS
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

Scodeno Shockproof Drop Resistance Optical Fiber Splicer Fusion Fiber Optic cable Fusion Splicing Machine

Product Description:

Applicable fibers	SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types
Splicing Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS)
Return Loss	≥60dB
Tension Test	Standard 2N (optional)
Fiber Diameter	Cladding diameter 80-150um, coating layer 250-1000um; 16mm
Cutting Length	Coating≤250um: 8-16mm; Coating 250-1000um;16mm
Magnification	400 times (x-axis or y-axis)
Heat Shrink Sleeve	60mm, 40mm and a series of micro shrink sleeves

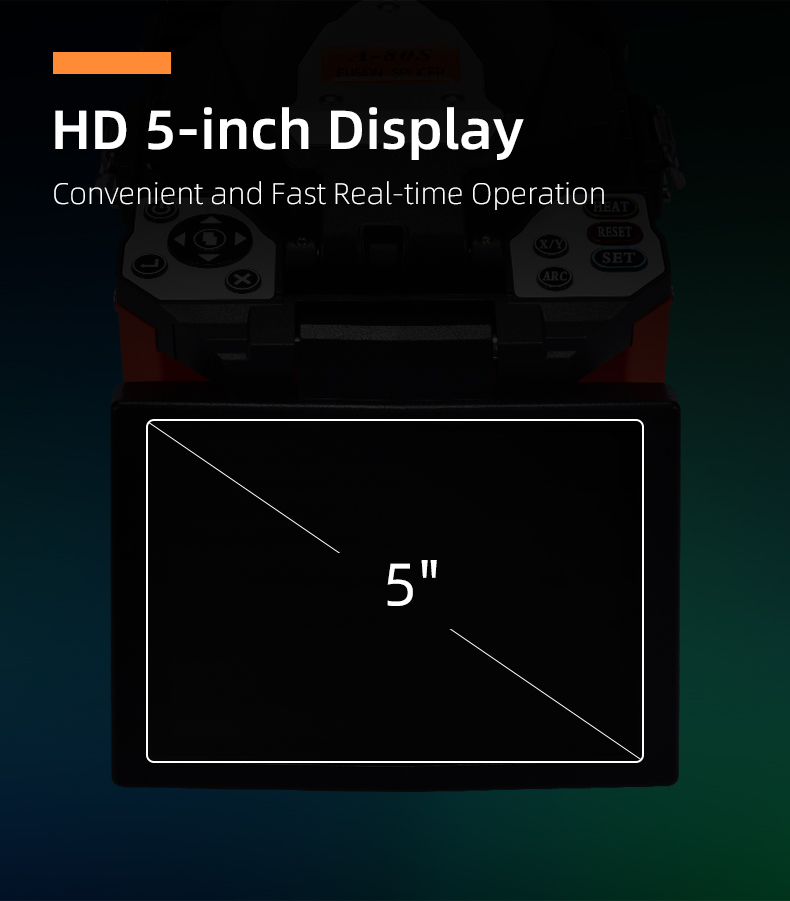

Display	5.0-inch TFT color LCD display, reversible content, convenient for two-way operation
External Interface	USB interface
Fusion Mode	17 group of operation modes
Heating Mode	9 group of operation modes
Continuous Loss Storage	Built-in memory holds 5000 latest continuous results
Power Saving Function	15% lithium battery capacity can be saved in typical environment
Power Supply	Built-in lithium battery 11.8V, charging time ≤3.5 hours. IExternal power adapter, Input AC100-240V 50/60HZ, Output DC 13.5V/4.81A
Operating Environment	-10~50°C, humidity < 95%RH (no condensation) Working altitude 0-5000m, maximum wind speed 15m/s
Dimensions	158130156mm(LWH)
Weight	1.17kg (without battery) 2.14kg (with battery)
