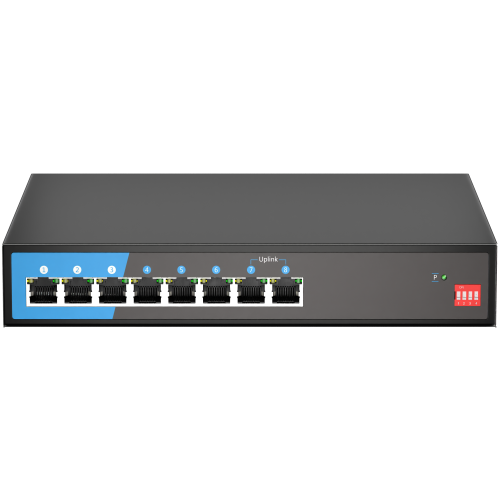

8 Port Gigabit af/at Long Distance PoE Switches

Provider Mode Ports

Fixed port

8*10*10/100/1000 Base-T

Power interface

AC220V

LED Indicators

P , active,speed

Cable type&Transmission distance

Twisted-pair

0-100m/250M

Network Topology

Ring topology

No support

Star topology

support

Bus topology

support

Tree Topology

support

Electrical Specifications

input voltage

AC 100-240V 50/60Hz

Total Power consumption

≤130W

PoE function

Support standard

802.3AF,802.3AT

Power supply pin

12+  36-

Support port

1-8

DIP switch

1

AI PoE( (Automatically detect port status and restart the remote PD)

2

1-6 ports 250M long distance transmission

3

1-6 ports isolation

4

storm suppression

Layer 2 Switching

Switching capacity

20G

Packet forwarding rate

14.88Mpps

MAC address table

4K

Buffer

2K

Forwarding delay

<5us

MDX/MIDX

support

Environment

Operating temperature

-10℃~+50℃

Storage temperature

-40℃~+70℃

Relative humidity

5%~95% no support non-condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hours

EMC&INGRESS PROTECTION

Surge protection of Ethernet port

IEC 61000-4-5  Level 4(4/2KV)(10/700us)

DIP

IEC 61000-4-11  Level3 (10V)

ESD

IEC 61000-4-2  Level 4 (8K/15K)

Free fall

0.5m

 Mechanical Dimensions

Product size

220*162*37mm(LxWxH)

Installation Method

Desktop, Wall Mounted

Weight

0.82KG

Accessories

Accessories

Equipment, certificate, manual, power cord
