Product Description
Product Description

10GTP-S2-AC

Product  Description

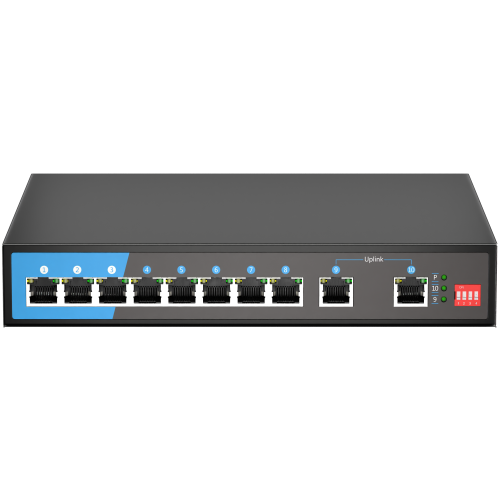

10GTP-G2-AC series unmanaged PoE switches, with 8 10/100Mbps auto-sensing RJ45 ports, and 2 Gigabit Ethernet ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding. The store-and-forward method is adopted to provide stable and reliable data transmission.

T

Product parameters        PRODUCT PARAMETERS



Provider Mode Ports

Fixed port

8*10/100 Base-T +2* 1000Base-T

Power interface

AC220V

LED Indicators

P ,link/active,speed

Cable type&Transmission distance

Twisted-pair

0-100m



Network Topology

Ring topology

No support

Star topology

support

Bus topology

support

Tree Topology

support



Electrical Specifications

input voltage

AC 100-240V 50/60Hz

Total Power consumption

≤150W



PoE function

Support standard

802.3AF，802.3AT

Power supply Pin

12+  36-

Support port

1-8



DIP switch

1

AI PoE( (Automatically detect port status and restart the remote PD)

2

1-8 ports  250M long distance transmission

3

1-8port isolation

4

Storm suppression



Layer 2 Switching

Switching capacity

20G

Packet forwarding rate

14.88Mpps

MAC address table

4K

Buffer

2K

Forwarding delay

<5us

MDX/MIDX

Support



Environment

Operating temperature

-10℃~+50℃

Storage temperature

-40℃~+70℃

Relative humidity

5%~95% no support non-condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hours



EMC&INGRESS PROTECTION

Surge protection of Ethernet port

IEC 61000-4-5  Level 4（4/2KV）（10/700us）

DIP

IEC 61000-4-11  Level3 （10V）

ESD

IEC 61000-4-2  Level 4 （8K/15K）

Free fall

0.5m



Mechanical Dimensions

Product size

220*162*37mm（LxWxH）

Installation Method

Desktop, Wall Mounted

Weight

0.82KG

Accessories



Accessories

Equipment, certificate, manual, power cord
