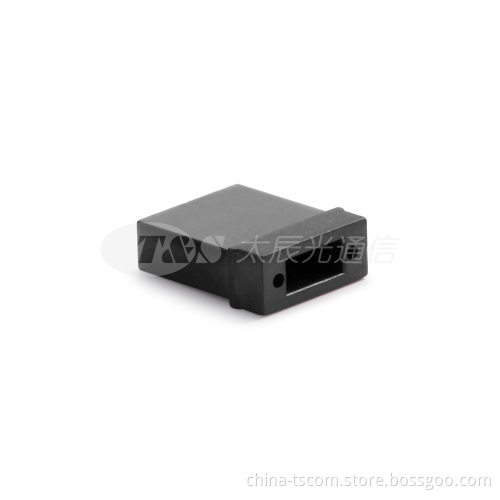

Contact NowThe MT ferrule is a multi-fiber, plastic ferrule with a square end-face of 6.4x2.5 mm and fiber pitch 0.25mm, widely applied in MPO connectors and AOC cables. 12 and 24-fiber MT ferrules are the most commonly used types.
Features of MT Ferrule
MT ferrules manufactured by high precision mold technology meet international standards such as IEC 61754-3-31, GR-135 etc.
Specification of MT Ferrule
|
Ferrule |
Type |
Fiber Hole Diameter (mm) |
Guide Pin Hole Diameter (mm) |
Insertion Loss（dB） |
|
12-Fiber |
MM Standard |
0.1255+0.002/-0 |
0.7±0.001 |
Typical=0.25 max≤0.5 |
|
MM Low Loss |
0.1255+0.002/-0 |
0.7+0/-0.001 |
Typical=0.12 max≤0.35 |
|
|
SM Standard |
0.1250+0.001/-0 |
0.7+0/-0.001 |
Typical=0.25 max≤0.7 |
|
|
SM Low Loss |
0.1250+0.0007/-0 |
0.6990+0.0006/-0 |
Typical=0.12 max≤0.35 |
|
|
24-Fiber |
MM Standard |
0.1255+0.002/-0 |
0.7±0.001 |
Typical=0.25 max≤0.5 |
|
MM Low Loss |
0.1255+0.002/-0 |
0.7+0/-0.001 |
Typical=0.12 max≤0.35 |
|
|
SM Standard |
0.1250+0.001/-0 |
0.7+0/-0.001 |
Typical=0.25 max≤0.7 |
|
|
SM Low Loss |
0.1250+0.0007/-0 |
0.6990+0.0006/-0 |
Typical=0.12 max≤0.35 |
