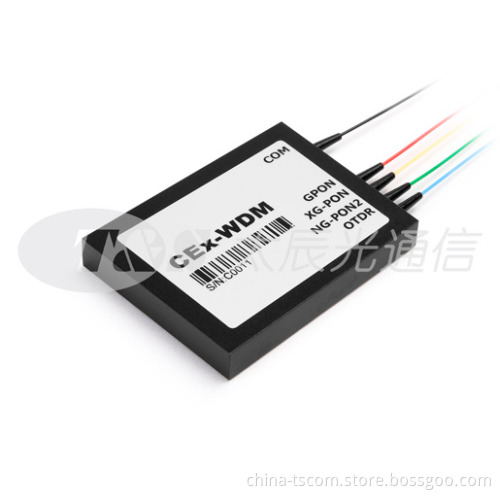

Contact NowT&S Cex-WDM is a kind of coexistence WDM product, which is mainly used in optical fiber access network. It can use EPON/GPON network of 1 to 2.5Gbps and XG-PON network of 10Gbps rate in the same ODN. , And even use NG-PON2 network with a rate of 10 to 40Gbps; using Cex-WDM can save a lot of ODN capital investment at the access network level.
Features of Cex WDM
Automatic Optical alignment
Bi-directional
Optical path epoxy free
Low insertion loss & high Isolation;
Thin Film Filter Technology
RoHS compliant
Applications of Cex WDM
T&S’ CEx-wdm Series is designed for Next Generation Passive Optical Networks (NG-PON), a new optical access system that coexists with GPON on the same ODN. Our CEx-wdm Modules, including GPON, XG-PON, NG-PON2 and OTDR, are designed to accommodate NG-PON1 and NG-PON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.
Specifications of Cex WDM
|
Parameters |
Unit |
Specification |
|
|
Operating Wavelength Range |
nm |
1260～1660 |
|
|
GPON Bands |
Operating Wavelength |
nm |
1290～1330 & 1480～1500 |
|
Insertion Loss* |
dB |
≤1.0 |
|
|
Isolation@XG-PON bands&NG-PON2bands&OTDR bands |
dB |
≥35 |
|
|
XG-PON Bands |
Operating Wavelength |
nm |
1260～1280 & 1575～1581 |
|
Insertion Loss* |
dB |
≤1.6 |
|
|
Isolation@GPON bands&NG-PON2bands&OTDR bands |
dB |
≥35 |
|
|
NG-PON2 Bands |
Operating Wavelength |
nm |
1524～1544 &1596～1625 |
|
Insertion Loss* |
dB |
≤1.8 |
|
|
Isolation@GPON bands&XG-PON bands&OTDR bands |
dB |
≥40 |
|
|
OTDR Bands |
Operating Wavelength |
nm |
1640～1660 |
|
Insertion Loss* |
dB |
≤2.2 |
|
|
Isolation@GPON bands&XG-PON bands&NG-PON2 bands |
dB |
≥35 |
|
|
Pass Channel Ripple |
dB |
≤0.3 |
|
|
Return Loss |
dB |
≥45 |
|
|
Directivity |
dB |
≥45 |
|
|
Polarization Dependent Loss |
dB |
≤0.2 |
|
|
Polarization Mode Dispersion |
Ps |
≤0.2 |
|
|
Power handling |
mW |
≥300 |
|
|
Fiber Type |
/ |
Customer specified |
|
|
Fiber Length |
m |
1.0m or customer specified |
|
|
Connector Type |
/ |
Customer specified |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40～+85 |
|
|
Package Dimension |
mm |
L100 x W80 x H10 ABS Box or L60 x W50 x H8 Metal Box |
|
Note:
• Insertion loss excluding connector loss.
• Customized dimension is available.
