30W medical device switch power supply

Shenzhen Longxc Power Supply Co., Ltd. was established in 2009 and is a high-tech enterprise specializing in the research and development, production, sales, and provision of high reliability power supply system solutions for medical device switching power supplies. It is a specialized and innovative enterprise and has passed ISO9001:2015, EN ISO 13485:2016 quality management system certification, and ISO 14001:2015 environmental management system certification; Since its establishment, Longxingchen has always adhered to the business policy of "survival through quality, efficiency through management, development through innovation, and excellence through improvement". With international advanced design level, industry high standard requirements, and rigorous production management standards, it has developed and produced various medical equipment power supplies such as monitors, anesthesia machines, ventilators, electrocardiographs, infusion pumps, injection pumps, B-ultrasound, imaging, beauty, rehabilitation therapy, etc.

Longxc Smelted the industry's first professional dental Medical Power Supply, first Medical Adapter with LED, first slim ultra small 90W adapter and so on. Gradually break through technical barriers to meet the power requirements of all kinds of medical equipment. High quality products derive from strict control of production processes.And Provide unique systems security EMC solutions and training services. From components to end items, from pre-sales to after-sales for each product, Longxc Medical power supply pursue every detail: precision casting product, character makes product, quality accomplish product, to achieve products of quality, to serve customers with technology, Serving customers with technology. Ensure that equipment are safer, more stable, and more efficient.

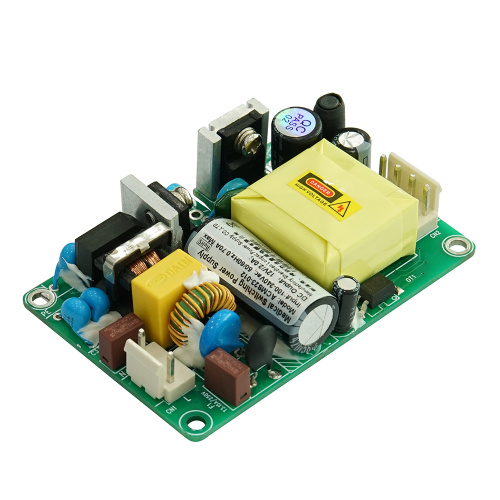

Feature Model: ACMS23 ClassⅠ&ⅡConstruction DC output voltage: 5-24Vdc Output peak power: 48W OCP/OVP/SCP Size(mm): 76.2(L)*50.8(W)*24.0(H) Terminal output

Model

Output Voltage

Output Current

Output Power

ACMS23-005

5V

4.00A

20.00W

ACMS23-075

7.5V

3.00A

22.50W

ACMS23-009

9V

3.00A

27.00W

ACMS23-012

12V

2.50A

30.00W

ACMS23-136

13.6V

2.20A

29.92W

ACMS23-142

14.2V

2.10A

29.82W

ACMS23-015

15V

2.00A

30.00W

ACMS23-168

16.8V

1.78A

29.90W

ACMS23-018

18V

1.66A

29.88W

ACMS23-019

19V

1.57A

29.83W

ACMS23-020

20V

1.50A

30.00W

ACMS23-024

24V

1.30A

31.20W

When the power switch of the medical monitor is set to the ON mark, but the ON/OFF soft start on the instrument panel does not act, keep pressing and holding the soft start button, the instrument can be stably turned on, and other function keys on the panel can work normally, indicating that the instrument can work normally. Once the soft start button is released, the instrument will enter a self cycling fault state and cannot start up normally.

1. Check the control and driving circuits

Check if the soft start control circuit is intact and if the power devices such as transistors in the driving part are working properly.

2. Replace faulty components

Based on the test results, after identifying the cause of the malfunction, replace the faulty circuit board, electronic components, and other components.

3. Download the new soft start firmware

Try updating the firmware program of the soft start controller to fix possible faults.

4. Contact manufacturer technical support

If the cause of the malfunction is unclear, you can contact the manufacturer's technical personnel for support and help solve the problem.
