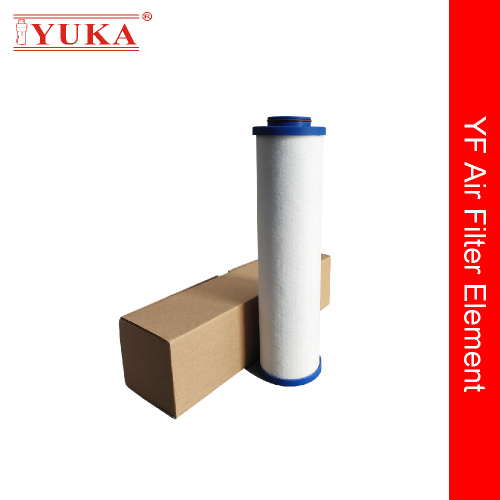

YUKA Air Intake Filter Element

The hazards of replacing the filter element over time

1. Impurities block the mesh, resulting in increased resistance, obvious pressure drop of compressed air, and reduced flow rate.

2. Weaken the filter medium and reduce the filter performance.

3. The filter paper is damaged, impurities enter the pipeline and enter the gas end, which seriously harms pneumatic equipment and production materials.

Suggestion

In order to ensure the air is clean, clean and stable, please use the original filter element of YUKA company for replacement.

Throughout the use of filtration, the filter element is continuously hit by oily, acidic condensate and high-velocity dust particles. To ensure the filtering performance of the compressed air system, please replace the filter element in time.

Customer Benefits

① Long spanlife under rate working conditions.

② Filtration performance up to 0.01micron and residual oil up to 0.001mg/m³ in according with ISO8573.1-2010 standard.

③ Low pressure drop, saving energy and cost for ownership.

④ Colorful element top cap, Spin-on for filter, easy operate and maintain.

Element Technical Specification

Filtration Grade
	PF	AO	AA	AX	ACS	AR	AAR
Particle removal (ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Outlet oil aerosol concentration  (ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-
Filtration performance of Particle (ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil (ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Element spanlife	6000 hours	6000 hours	6000 hours	6000 hours	2000-3000 hours	4000-6000 hours	4000-6000 hours
Precede with	Before refrigerated air dryer	after air dryer	after AO	after AA	before AX	after desiccant dryer	after AR
