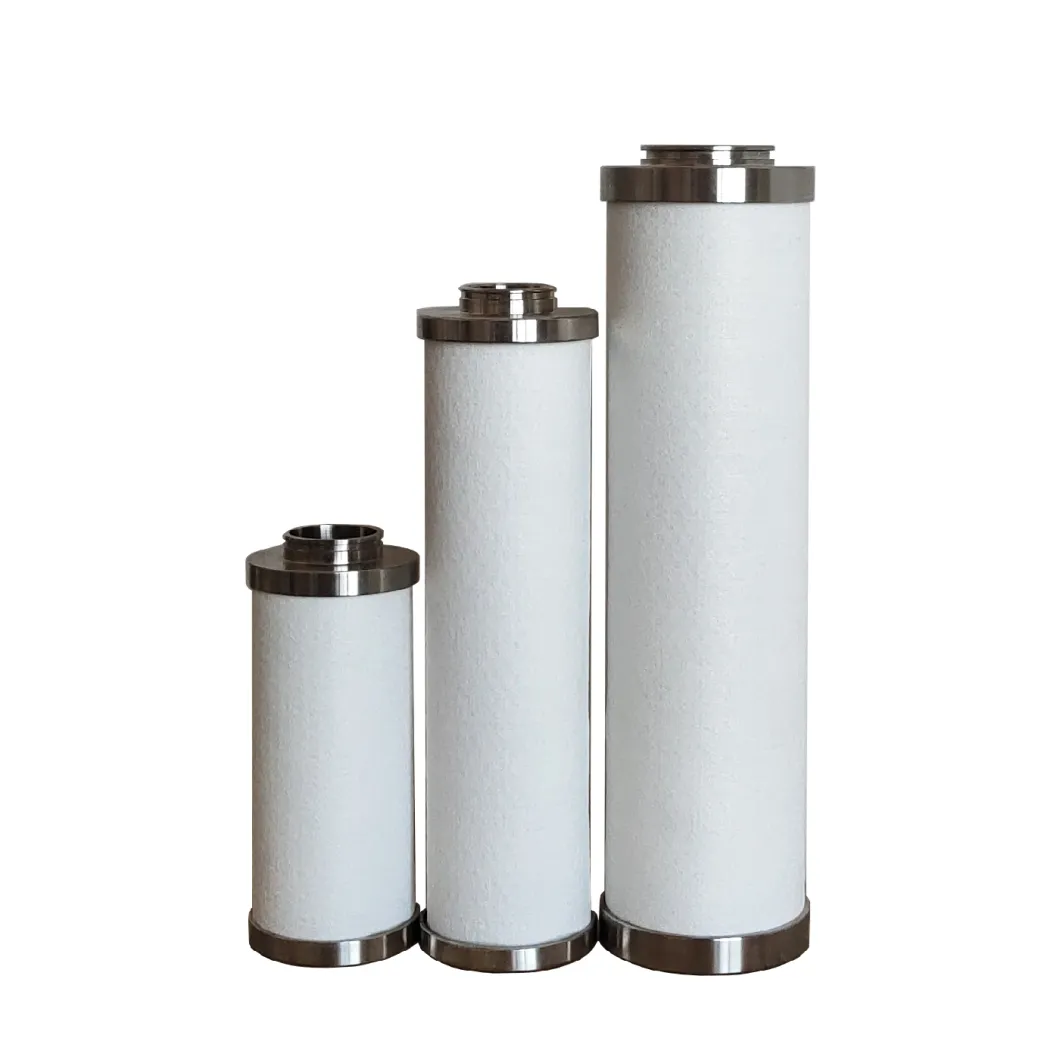

Filter Element Remove Oil/Particle

$43.65/Piece/Pieces

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	500PCS Per Days
Payment Type:	T/T
Port:	Shenzhen

Product Description

Feature & Benefit

a. 96% porosity, perfect dust holding ability, good hydrophobic and oleophobic,
improve filter performance by prevent particles from passing through the media to the downstream.

b. Bonded with special resin for top &end cap, prevent rust,corrosion, stop second pollution happened;

c. Double stainless steel support mesh, enlarge the endurance and improve the filtration efficiency.

PF	AO	AA	AX	ACS	AR	AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible	High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).	High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)	Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)	Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)	Dust particles whose diameter more than 1μm can be removed	Dust particles whose diameter more than 0.01μm can be removed

Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.
Filtration Grade	PF	AO	AA	AX	ACS	AR	AAR
Size of solid particles(ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Filtration performance of solid particles(ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil(ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Residual oil content(ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-

Model Number	G-BHL017	G-BHL025	G-BHL030	G-BHL035	G-BHL058	G-BHL068	G-BHL080	G-BHL145	G-BHL220	G-BHL260	G-BHL330	G-BHL360	G-BHL405	G-BHL430	G-BHL620
Flow rate (m³/min)	1.0	1.5	1.8	2.0	2.8	3.0	4.8	7.2	12.0	14.0	16.0	19.0	22.0	28.0	37.2
