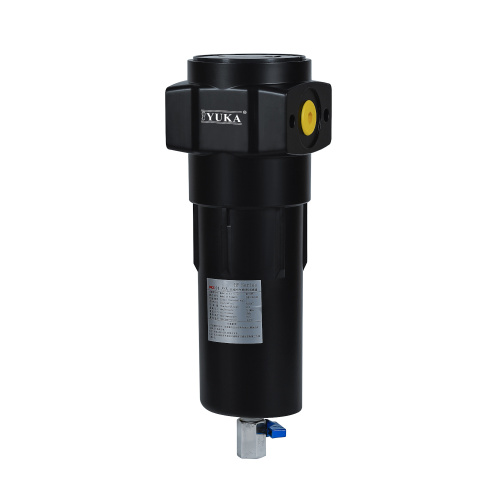

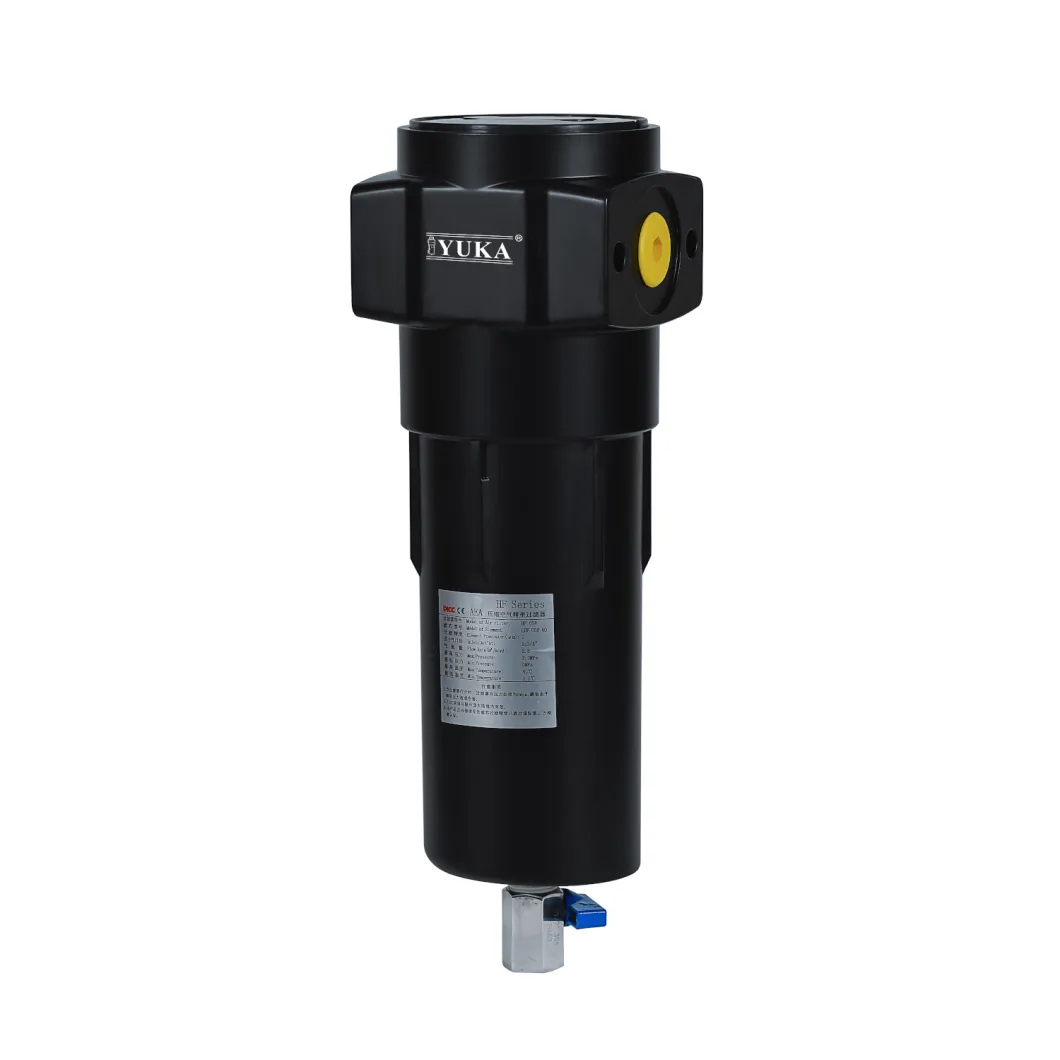

High Cyclone Water Separator with Manual Ball Valve

High Cyclone Water Separator with Manual Ball Valve

$120.00/Piece/Pieces

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	500PCS Per Days
Payment Type:	T/T
Port:	Yantian

Product Description

Product Feature
· 99.73% efficiency of condensate removal
· Inside & Outside resistace corrosion Treatment, prevent second pollution
· Grade A aluminum alloy material, Maxi. pressure up to 3.0 Mpa
· For large side connection, Flange connected available

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g).
For the application in other working pressure, please refer to the correction factors:

Model	Pipe Size	Flow rates			Dimension(mm)
Model	Pipe Size	L/S	m³/min	cfm	W (Weight)	H (High)	A	B
GHFWS 15	RC1/2"	40.00	2.40	84.50	90	82	253	39
GHFWS 25	RC3/4"	60.00	3.60	127.08	90	82	253	39
GHFWS 50	RC1"	75.00	4.50	158.85	90	82	289	39
GHFWS 75	RC1"	125.00	7.50	264.75	120	113	369	52
GHFWS 100	RC1-1/2"	166.67	10.00	353.10	120	113	369	52
Technical requirements	Maximum operating pressure: 30 barg Operating temperature:1.5°C~ 80°C

Pressure	Barg	10	15	20	25	30
Pressure	Psig	145	218	290	363	435
Correction factor		3.0	2.0	1.5	1.2	1.0


YUKA CE & ISO9001-2015 Certificate

Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA Patents

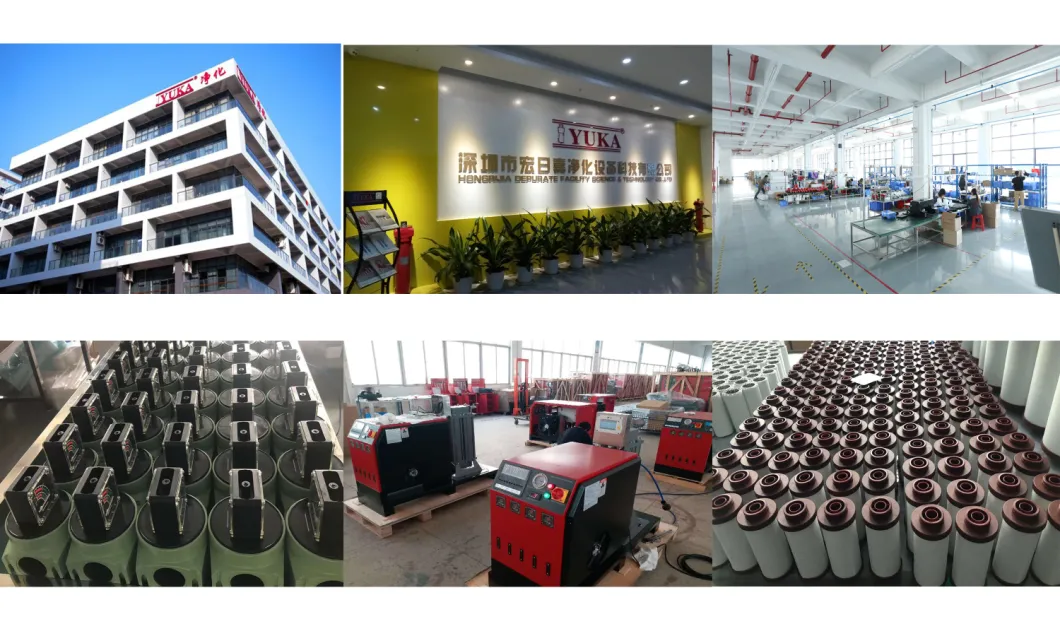

YUKA Factory
Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA Facility

YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe

YUKA Package
Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
