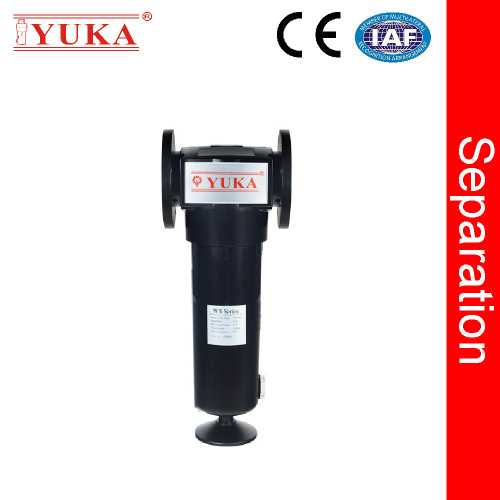

2118 CFM Water Separator With Flange Connection

$1178.00

1-19 Piece/Pieces
$1118.00

≥20 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	500pcs per day
Payment Type:	T/T
Incoterm:	CIF,EXW,CFR,FOB
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Shanghai,Ningbo

Product Description

Flange Water Separators
YUKA Filtration offers a range of Filter Water Separator with proven cyclone technology and ahead-thinking housing design that drives market leading water removal efficiencies.
Our Air Compressor With Water Separator are available in a broad range of models with connection sizes ranging from 1/2” to DN125”Rc (BSP Taper).
YUKA Filtration Water Separator Filter Air Compressor has a maximum operating temperature of 176 ˚F (80˚C), an operating pressure of up to 142.85 psig (10 barg), and flow capacities up to 85 SCFM (144 Nm³/hr) up to 1766 SCFM (300 Nm³/hr).Used to remove bulk liquid following the compression of air, installing a Water Separator reduces the risk of contamination to production equipment, product spoilage, and costly shutdowns caused by damage of high levels of moisture and condensate in the system.

Working Principle

The compressed air gas-water separator is composed of a housing, a cyclone separator, and sewage components. When the compressed air containing a large amount of oil and water solid impurities enters the separator, it spins down along its inner wall. The centrifugal effect produced causes the liquid water to separate out of the vapor stream and flow down the wall. Under the action of gravity, it flows into the separator. The bottom of the device is discharged by the automatic drain valve.

Feature & Benefit

①99% Separation efficiency from compressed air system

②Zero pressure drop, saving energy and money

③Internal & external anti-corrosion treatment, increase spanlife and ensure separation efficiency

④With Strong structure, 15 years warranty, reasonable cost

Technical Specification

The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m³/min	scfm	W(Width)	D(Depth)	H(Height)
WS 15	RC1/2"	40.0	2.4	84.5	89	79	228
WS 25	RC3/4"	60.0	3.6	127.1	89	79	228
WS 50	RC1"	75.0	4.5	158.9	89	79	263
WS 75	RC1"	125.0	7.5	264.8	120	110	335
WS 100	RC1-1/2"	166.7	10.0	353.1	120	110	335
WS 200	RC2"	300.1	18.0	635.6	164	151	564
WS 250	RC2-1/2"	416.8	25.0	882.8	164	151	664
WS 700	RC2-1/2"	700.0	42.0	1483.1	200	189	712
WS 800	RC3"	833.5	50.0	1765.6	200	189	712
WS 800F	DN80/DN100	833.5	50.0	1765.6	280	189	734/744
WS 1000F	DN100/DN125	1000.2	60.0	2118.7	280	189	780/795
WS 1200F	DN100/DN125	1166.7	70.0	2464.0	280	189	1058/1073
Technical requirements	Maximum operating pressure: 10 barg Operating temperature:1.5~ 80°C

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51
