Centrifugal Water Separator Removed Liquid Compressed Air
-
$177.001-19 Piece/Pieces
-
$168.00≥20 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Shanghai, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Supply Ability: | 500pcs per day |
| Payment Type: | T/T |
| Incoterm: | CIF,EXW,CFR,FOB |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai,Ningbo |

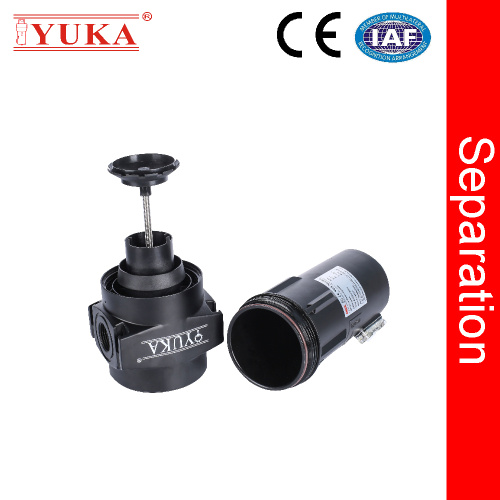

The Filter Water Separator is composed of a housing, a cyclone separator, and sewage components. When the compressed air containing a large amount of oil and water solid impurities enters the Air Compressor With Water Separator, it spins down along its inner wall. The centrifugal effect produced causes the liquid water to separate out of the vapor stream and flow down the wall. Under the action of gravity, it flows into the separator. The bottom of the device is discharged by the automatic drain valve.
Feature & Benefit
①99% Separation efficiency from compressed air system
②Zero pressure drop, saving energy and money
③Internal & external anti-corrosion treatment, increase spanlife and ensure separation efficiency
④With Strong structure, 15 years warranty, cost reasonable
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.
| Model | Pipe size | Flow rates | Dimension (mm) | ||||
| L/S | m³/min | scfm | W(Width) | D(Depth) | H(Height) | ||
| WS 15 | RC1/2" | 40.0 | 2.4 | 84.5 | 89 | 79 | 228 |
| WS 25 | RC3/4" | 60.0 | 3.6 | 127.1 | 89 | 79 | 228 |
| WS 50 | RC1" | 75.0 | 4.5 | 158.9 | 89 | 79 | 263 |
| WS 75 | RC1" | 125.0 | 7.5 | 264.8 | 120 | 110 | 335 |
| WS 100 | RC1-1/2" | 166.7 | 10.0 | 353.1 | 120 | 110 | 335 |
| WS 200 | RC2" | 300.1 | 18.0 | 635.6 | 164 | 151 | 564 |
| WS 250 | RC2-1/2" | 416.8 | 25.0 | 882.8 | 164 | 151 | 664 |
| WS 700 | RC2-1/2" | 700.0 | 42.0 | 1483.1 | 200 | 189 | 712 |
| WS 800 | RC3" | 833.5 | 50.0 | 1765.6 | 200 | 189 | 712 |
| WS 800F | DN80/DN100 | 833.5 | 50.0 | 1765.6 | 280 | 189 | 734/744 |
| WS 1000F | DN100/DN125 | 1000.2 | 60.0 | 2118.7 | 280 | 189 | 780/795 |
| WS 1200F | DN100/DN125 | 1166.7 | 70.0 | 2464.0 | 280 | 189 | 1058/1073 |
| Technical requirements | Maximum operating pressure: 10 barg Operating temperature:1.5~ 80°C | ||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
