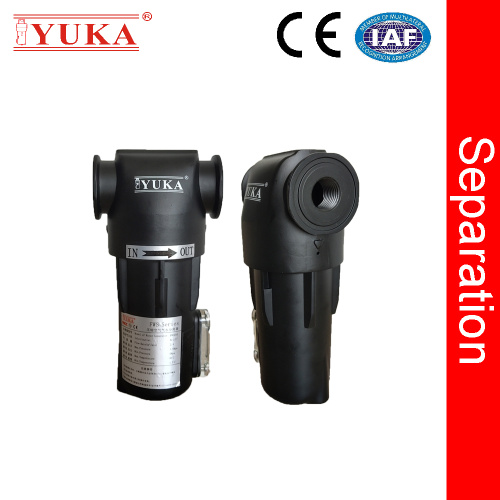

Water Separator Compressor With Auto Drain
-
$132.351-19 Piece/Pieces
-
$125.73≥20 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500pcs per day |
| Supply Ability: | 500pcs per day |
| Payment Type: | L/C,T/T |
| Incoterm: | EXW,CIF,CFR,FOB |
| Certificate: | CE |
| HS Code: | 8421399090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Guangzhou,Shanghai |
The gas-water separator is a pressure vessel structure aluminum alloy equipment. It must be installed on a horizontal pipeline with the drain vertically downward. In order to ensure that the separated liquid is discharged quickly, a suitable set of trap combination should be connected to the drain port at the bottom of the water separator tank.
Feature & Benefit
A. High liquid removal efficiencies at all flow conditions
B. Protects coalescing filters from bulk liquid contamination.
C. Helps provide air quality in accordance with ISO 8573-1:2001 the international
standard for compressed air quality
D. Suitable for all compressed air applications
E. Suitable for all compressor types, including variable flow
F. Low pressure losses for low operational costs
G. Low lifetime costs
H. All FWS water separators are covered by a 15 year housing guarantee.
Technical Specification
Model
Pipe size
Flow rates
Dimension (mm)
L/S
m³/min
scfm
W(Width)
D(Depth)
H(Height)
A
B
C (clearance for housing)
FWS010
RC1/2"
40.0
2.4
84.5
96
79
233
29
198
118
FWS020
RC3/4"
60.0
3.6
127.1
96
79
233
29
198
118
FWS050
RC1"
75.0
4.5
158.9
96
79
268
29
233
153
FWS060
RC1"
125.0
7.5
264.8
138
111
339
37
296
208
FWS070
RC1-1/2"
166.7
10.0
353.1
138
111
339
37
296
208
FWS100
RC2"
300.1
18.0
635.6
174
142
669
58
607
469
FWS110
RC2-1/2"
416.8
25.0
882.8
174
142
669
58
607
469
FWS131
RC2-1/2"
700.0
42.0
1483.1
220
184
726
74
649
514
FWS140
RC3"
833.5
50.0
1765.6
220
184
726
74
649
514
FWS140F
DN80/DN100
833.5
50.0
1765.6
300
184
746/761
74
649
514
FWS150
RC4"
1000.2
60.0
2118.7
220
184
726
74
649
514
FWS150F
DN100/DN125
1000.2
60.0
2118.7
300
184
761/776
74
649
514
FWS170
RC4"
1166.7
70.0
2464.0
220
184
983
74
906
764
FWS170F
DN100/DN125
1166.7
70.0
2464.0
300
184
1018/1033
74
906
764
Technical requirements
Maximum operating pressure: 10 barg Operating temperature:1.5~ 80°C
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51
