robot laser welding machine

$20000.00

≥10000 Set/Sets

Min. Order:: 10000 Set/Sets

Min. Order:: 10000 Set/Sets

Transportation:: Ocean, Land, Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Transportation:	Ocean,Land,Express

Product Description

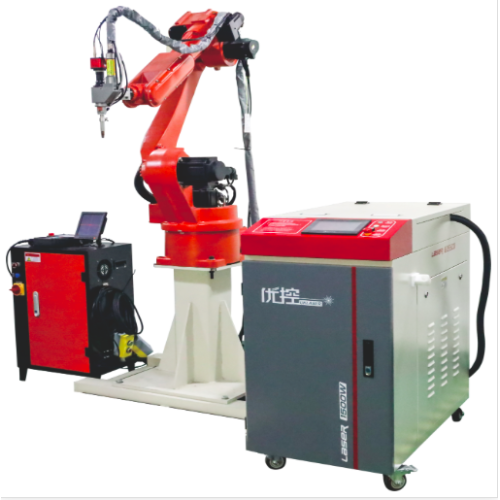

The system is mainly composed of laser welding machine, laser welding gun, cold water machine, robot system
Control the composition of the fixture of the electric box machine; The laser welding head is installed on the wrist of welding robot,
Welding of complex parts can be completed;

technical parameters
Model	UK-HJLX-SC1000W	UK-HJLX-SC1500W	UK-HJLX-SC2000W
laser power	1000w	1500w	2000w
laser wave length	1070±5 nm	1070±5 nm	1070±5 nm
run mode	continuation/modulation	continuation/modulation	continuation/modulation
output welding head type	hand-held swinging head	hand-held swinging head	hand-held swinging head
stability of output power	＜3%	＜3%	＜3%
power regulation range	10~100%	10~100%	10~100%
welding penetration	0.5~2.5mm	0.5~3.5mm	0.5~5mm
spot width	0.2-3mm	0.2-3mm	0.2-3mm
cool type	in-built cooler	in-built cooler	in-built cooler
length of liber line	standard 10m, MAX 15m	standard 10m, MAX 15m	standard 10m, MAX 15m
blowing protetion	argon, nitrogen	argon, nitrogen	argon, nitrogen
power demand	AC220v/380v/50Hz	there-phase AC380v/50Hz	there-phase AC380v/50Hz
equipment power	4.5 Kw	5.5 Kw	6.5 Kw
covers area	1*1.6m	1*1.6m	1*1.6m
weight	200 Kg	200 Kg	210 Kg
working temperature	0~40°C	0~40°C	0~40°C
working humidity	10~75%	10~75%	10~75%
enviroment requirment	non-vibration,non-interference source,Ventilation	non-vibration,non-interference source,Ventilation	non-vibration,non-interference source,Ventilation
consumables	pure water, argon	pure water, argon	pure water, argon

Processing pictures
