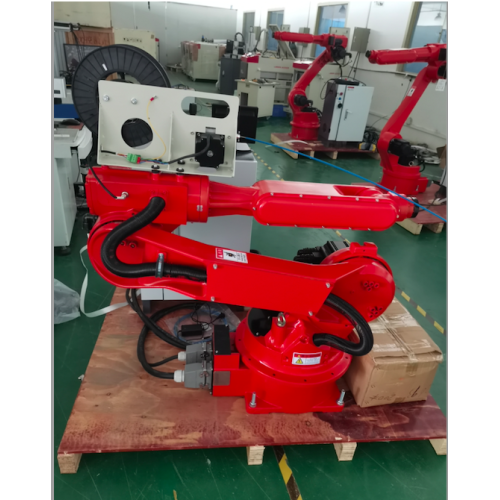

Three dimensional robot optical fiber laser welding machine

It is mainly used in the assembly and welding of automobile body covering parts, such as automobile door, side wall, skylight, floor, front compartment, rear compartment, trunk lid, etc. it has been successfully applied to the welding of automobile skylight, automobile A, B pillar and other parts and the production of automobile assembly.

Introduction to robot laser welding machine model:
Three dimensional robot laser welding machine is a high-tech product integrating laser welding, automobile parts assembly and welding, numerical control technology, automation and other disciplines. It has the characteristics of high precision, high efficiency, high cost performance and high automation. Based on the 6-axis robot imported from Japan, it has very high flexibility, can complete the processing of complex workpieces, and can adapt to the changeable situation of workpieces.
The welding system of 3D robot laser welding machine consists of the following parts: robot, workbench, vacuum cleaner, laser light source and chiller imported from Japan. For laser light sources, pulse lasers, diode lasers, fiber lasers and disk lasers can be connected to the robot system.
Robot laser welding machine model features:
*The equipment is efficient, stable, highly automated and compatible.
Robot laser welder system:
*Fiber lasers with different power levels are selected according to the material and thickness of the workpiece. The welding of metals is represented by carbon steel, aluminum and stainless steel. Aluminum is a highly reflective material. Under the same material thickness, a higher power laser needs to be selected. Carbon steel is easy to weld. The typical parameter is 2mm thick carbon steel, and a 200W laser is selected. For specific model selection, please contact our process engineer.
*Welding with different focal lengths shall be selected according to the thickness of the workpiece. 5-inch medium focal length welding joint can be selected for thin plate welding below 6mm, and 7-inch long focal length welding joint is generally selected for medium plate welding above 6mm.
*Select offline programming software according to actual needs.
*In short, the combination of industrial robot and fiber laser is used for processing, and the welding interface is neat without subsequent process, which greatly shortens the process flow, reduces the investment of labor cost and mold cost, and improves the product grade and product added value. The off-line programming software of our company is selected to directly generate the welding track through digital simulation, which abandons the complicated manual teaching, and is more suitable for some personalized welding needs such as small batch and multi batch maintenance market, new product trial production and non-standard customization. Moreover, investment in high flexibility and high efficiency laser welding equipment can more flexibly replace products and grasp the market.
