Product Description

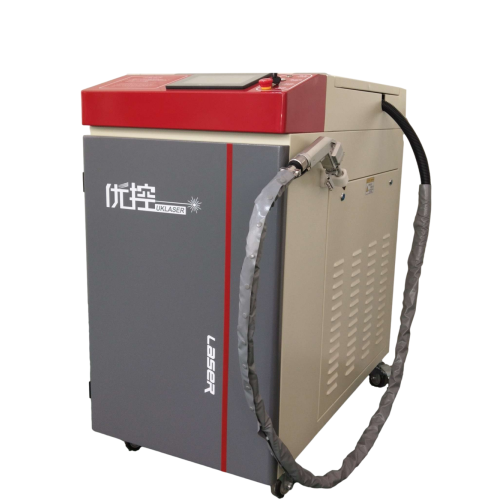

Automatic continuous laser welding machine
Application fields:
Continuous fiber laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can realize the precision welding between the same metal and different metals. It has been widely used in hardware, small household appliances, kitchen supplies, instrumentation, mechanical and electrical products, automobile manufacturing and other industries.
Continuous fiber laser welding machine is composed of "welding host" and "welding workbench". This series of equipment has a number of workbenches to choose from, which can fully meet the needs of users in different industries.

model	UK-HJLX-SC500W	UK-HJLX-SC1000W	UK-HJLX-SC1500W
laser power	500w	1000w	1500w
Laser wavelength	1070±5 nm	1070±5 nm	1070±5 nm
Operation mode	Continuous / modulation	Continuous / modulation	Continuous / modulation
Output welding joint type	Hand held swinging head	Hand held swinging head	Hand held swinging head
Output power stability	＜3%	＜3%	＜3%
Power regulation range	10~100%	10~100%	10~100%
Weld penetration	0.5~2.0mm	0.5~2.0mm	0.5~2.0mm
Spot width	0.2-3mm	0.2-3mm	0.2-3mm
Cooling mode	Built in water cooling	Built in water cooling	Built in water cooling
Fiber line length	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters
Blowing protection	Argon, nitrogen	Argon, nitrogen	Argon, nitrogen
Electricity demand	AC220v/50Hz	AC220v/380v/50Hz	AC380v/50Hz
Equipment power	3.5 Kw	4.5 Kw	5.5 Kw
area covered	1*1.6m	1*1.6m	1*1.6m
Overall weight	180 Kg	200 Kg	200 Kg
working temperature	0~40°C	0~40°C	0~40°C
Working humidity	10~75%	10~75%	10~75%
Environmental requirements	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation
Consumables	Purified water, argon	Purified water, argon	Purified water, argon
