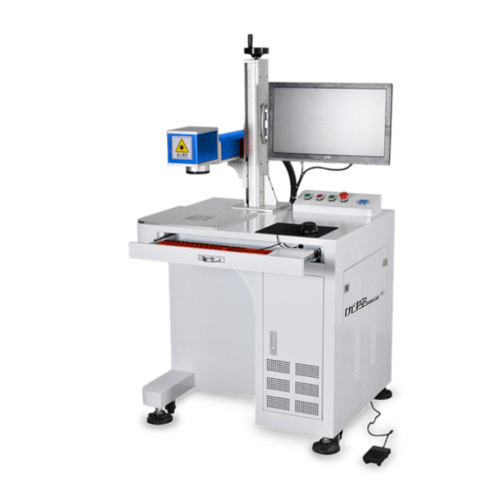

Optical fiber transmission laser welding machine
Product introduction
Youkong400 optical fiber transmission laser welding machine has the advantages of good beam quality and thin spot. Optical fiber transmission laser welding machine is a kind of laser welding equipment that laser is transmitted through optical fiber, collimated into parallel light through collimating lens, and then focused on the workpiece for welding. It can carry out long-distance and flexible welding operation, and can process multiple stations at the same time through light splitting.
Youkong400 optical fiber transmission laser welding machine is suitable for welding microelectronic components, precision parts, digital components, optical fiber connectors, medical devices, etc. Weldable materials: carbon steel, ordinary alloy steel, stainless steel, laser welding between different steels, stainless steel - low carbon steel, 416 stainless steel - 310 stainless steel, 347 stainless steel - hastally nickel alloy, nickel electrode - cold forged steel, bimetallic strip with different nickel content, titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel Welding between the same materials of Kovar alloy and other alloys. Copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper and other dissimilar metals

The unique trusteeship device keeps contact with the surface of the pipe when the pipe is fed and rotated. The support force is set according to the pipe specification to ensure effective support, prevent the pipe from sagging, reduce the axis swing when the pipe rotates, and improve the processing accuracy.

Automatic whole bundle feeding function (optional), reduce the number of operators and improve the processing efficiency at the same time.

model	UK-HJLX-SC500W	UK-HJLX-SC1000W	UK-HJLX-SC1500W
laser power	500w	1000w	1500w
Laser wavelength	1070±5 nm	1070±5 nm	1070±5 nm
Operation mode	Continuous / modulation	Continuous / modulation	Continuous / modulation
Output welding joint type	Hand held swinging head	Hand held swinging head	Hand held swinging head
Output power stability	＜3%	＜3%	＜3%
Power regulation range	10~100%	10~100%	10~100%
Weld penetration	0.5~2.0mm	0.5~2.0mm	0.5~2.0mm
Spot width	0.2-3mm	0.2-3mm	0.2-3mm
Cooling mode	Built in water cooling	Built in water cooling	Built in water cooling
Fiber line length	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters
Blowing protection	Argon, nitrogen	Argon, nitrogen	Argon, nitrogen
Electricity demand	AC220v/50Hz	AC220v/380v/50Hz	AC380v/50Hz
Equipment power	3.5 Kw	4.5 Kw	5.5 Kw
area covered	1*1.6m	1*1.6m	1*1.6m
Overall weight	180 Kg	200 Kg	200 Kg
working temperature	0~40°C	0~40°C	0~40°C
Working humidity	10~75%	10~75%	10~75%
Environmental requirements	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation
Consumables	Purified water, argon	Purified water, argon	Purified water, argon
