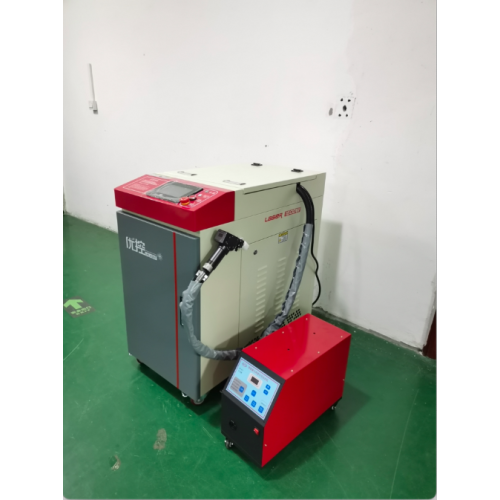

Double pendulum handheld laser welding machine

Handheld laser welding system is a controller developed by Ruida technology for laser welding. Support double galvanometer motor control, support a variety of different swing types, automatic wire feeding and other functions, and support the functions of slow rise and fall of laser power, early gas opening and delayed gas closing. The system is easy to operate and can display input and output IO status, alarm information, motion status and other information in real time.

Function Description:
1. It can support x-axis and y-axis double galvanometer motor axis movement at most.
2. Up to 9 sets of welding parameters can be set.
3. Up to 4 swing types can be supported
4. Support real-time monitoring of input / output IO status.
5. Support automatic wire feeding function.
6. Support gas on delay, gas off delay, power slow rise and slow fall and other welding processes.
Product accessories:
1. LCD terminal_ RD63X_ T70_ 15WT
2. DB25 female welding wire
3. DB25 housing - for welding wire
4. DB9 male seat - welding wire
5. Db15-vga housing
6. 3.81mm-in-line-kf-3p socket
7. 3.81mm-in-line-kf-4p socket
8. 3.81mm-in-line-kf-6p socket
9. Touch screen 4-core connecting wire -1.5m-black
