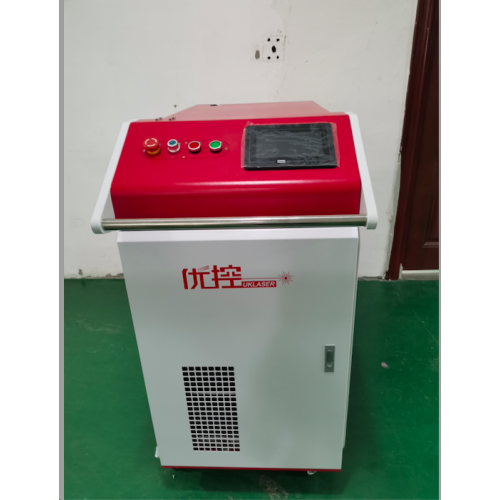

Portable laser welding and cutting machine

The hand-held laser welding machine is a continuous fiber laser as the light source. It has many new ideas in the shape, structure and human-machine interface suitable for operation based on humanization and practical work. The hand-held welding head can be customized according to the actual production, which is very suitable for non-standard production. The hand-held welding head adopts water-cooled design, which can not be hot for long time welding, small diameter, convenient for hand holding, and will not fall off easily because of its fine, It will not be too thick to grasp, and take full account of various parameters of mass production of equipment, and achieve the key parameters adjustable data display closed-loop in detail.

Characteristics of hand held laser welding machine
The laser has long service life, high electro-optic conversion efficiency, low maintenance cost and easy operation
The scientific and compact design and built-in water cooling technology ensure the minimum floor space and maximum mobility
The options of 1000W and 1500W are available to meet the requirements of welding depth and efficiency of different materials
The penetration welding of 3mm stainless steel or high speed welding of 1mm stainless steel can be realized
The standard configuration is water-cooled and blowable gas welded joint; The maximum welding spot of 4mm can be achieved by selecting swing welding joint, which is especially suitable for the situation of wide or irregular weld
The welding surface is smooth and bright. It can be welded repeatedly. After welding, it can be polished slightly. When welding stainless steel, argon blowing can also be avoided
The three different designs of copper nozzles can be used for internal fillet welding, external fillet welding, splicing welding and other applications
Application scope of handheld laser welding machine
Sheet metal processing, advertising logo, commercial kitchen custom processing, stainless steel stove, barbecue car, dining car, doors and windows, fence, stainless steel furniture lamps, distribution box, equipment cabinet, pipe welding. Suitable for stainless steel, titanium plate, galvanized sheet, white iron, titanium plate, colored plate, copper plate, aluminum plate and other metals.

Index parameters:
Laser type: Fiber laser
Laser power: 1000-1500w
Laser wavelength: 1064nm
Cooling mode: water-cooling
Water temperature: 25℃
Welding speed: 10-40mm/s
Overall dimension (L) × wide × (high) 1000mm × 800mm × 1100mm
Control system: customized
Welding thickness: No more than 3mm stainless steel
Product splicing gap: Not more than 1 mm
