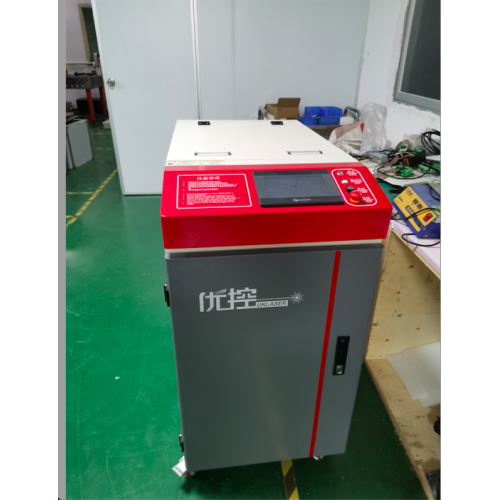

Advertising laser welding machine

Advertisement  laser welding machine, Advertisement word laser welding machine can weld all kinds of metal advertisement words with high speed, accurate and firm welding. It is suitable for the following industries: This equipment can not only weld metal advertisement words in advertisement manuscript industry, but also can be used in electronic components, communication, auto and motorcycle parts, instruments, aerospace, military products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware, medicine, etc Food and beverage, cosmetics, drug packaging, medical devices, solar energy, process products and other fields.

Laser welding machine for advertising words metal advertising  welding machine scope of application: all kinds of fine words, Seiko words, mirror words, Shagang words, titanium words, galvanized plate words, aluminum profile three-dimensional words, stainless steel mirror words, stainless steel wire drawing words, stainless steel spherical words, stainless steel flat words, stainless steel paint words, stainless steel spray words, stainless steel solid words, stainless steel electroplating words Stainless steel foil characters, Seiko metal characters, titanium plane characters, titanium ball surface characters, Seiko titanium characters, plane copper characters, spherical copper characters, red copper characters, red copper archaize characters, titanium plate characters, tin baking paint characters (stainless steel belt, iron belt, low carbon steel belt, galvanized steel belt) and other advertising words, as well as various metal identification led metal word shell welding forming.

Advertising laser welding machine adopts German technology production, life-long maintenance, equipped with high-power laser power supply, welding faster, more solid, can work 24 hours.

Advantages of advertising laser welding machine: for advertising word industry, especially the lengthened light path, 360 degree arbitrary rotation, larger expansion range;
There is no raised spot on the welding surface, so there is no polishing process, which saves time and labor, and the appearance is beautiful and firm;
With CCD monitor, the welding effect is more clear and intuitive.
Accurate and precise, can weld small and complex font and logo, fast, no color difference after welding, no trace after welding, no need to deal with, beautiful appearance;
Technical parameters of advertising laser welding machine:
The maximum laser power is 200W
The laser wavelength is 1064 nm
The maximum energy of single pulse is 110j
Laser welding depth 0.1-1.2mm
Pulse width 0.1-20ms
The frequency of laser welding is 1.0-40hz
The adjustable range of spot size is 0.2-2mm
Total power consumption ≤ 6kw
Power demand 220 V ± 10% / 50 Hz
Standard workbench 800 * 1200mm, load200kg
Aiming and positioning CCD synchronous HD camera (optional)
Laser up and down stroke ≥ 200 mm
Laser horizontal direction 200-800mm
