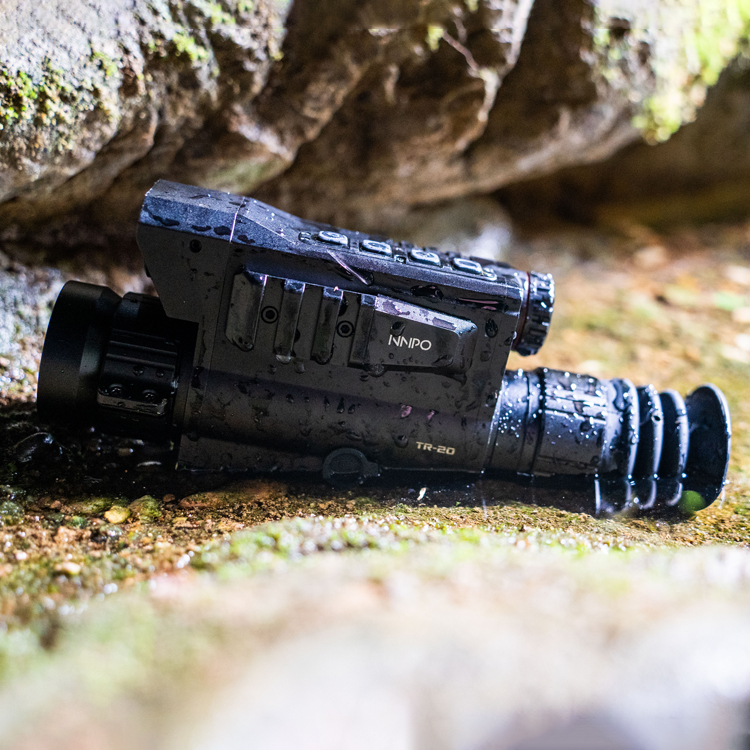

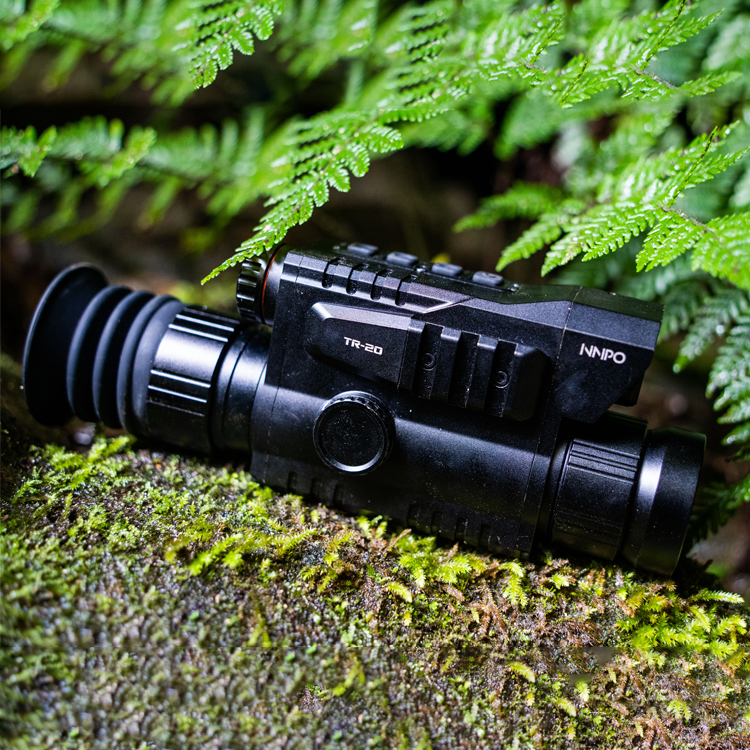

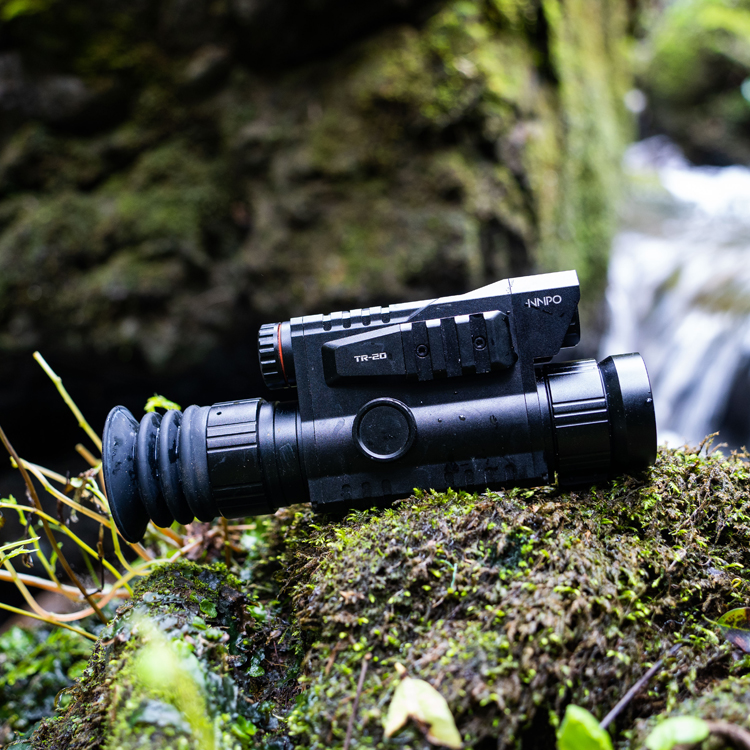

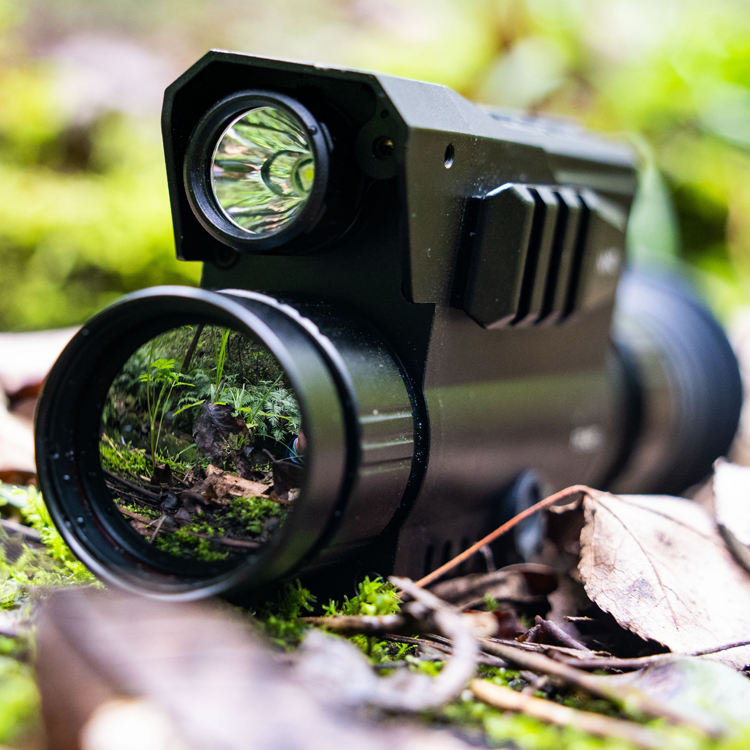

Handheld Infrared Thermal Imaging monocular Scope

$2250.00

1-99 Piece/Pieces
$1960.00

≥100 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW

Product Description

NNPO is a very great Thermal Imaging Monocular manufacturer, providiing many Optics products, such as thermal monocular, night vision and thermal scope.

NNPO provide many hunting equipment, such as Thermal Monocular, Night Vision Thermal Scope and other Optical products.

Specification

TR20	35mmm
Resolution,Pixel	384×288
Refresh Rate	50Hz
Pixel Size, micron	12μm
Objective Lens	35mm/f1.0
Magnification	2.04 - 8.16 x
Digital zoom	2x,4x
Eyerelief	40mm
Field of View (HxV)	10.5 x 7.9
Dioptre adjustment, dpt	± 5
Reticle Type	8-Pattern optional, or “NO reticle”
Reticle Color	4 colors: White, Black, Red and blue
Image Palettes	White Hot / Black Hot/ red hot /green hot/ Iron red / Sky
Display Resolution	1280x960
Laser locator	1mw red dot CAL
Detection distance Human(1.8×0.5)m	1000
Detection distance Vehicle(2.3×2.3)m	2500
Recognition distance Human(1.8×0.5)m	500
Recognition distance Vehicle(2.3×2.3)m	1000
Battery Type	Li-ion 18650 Rechargeable Battery Replaceable
Battery Life (Operating)	5 hours
External power supply	USB type c
Protection rate	IP66
Operating Temperature	-30℃ ... +60 ℃
Storage Temperature	-50℃.. +70 ℃
Size (L × W × H),mm / inch	188.8mm51mm74.1mm
Weight (W/o battery),Kg/ oz	560g
Housing Materials	Aluminum Alloy
