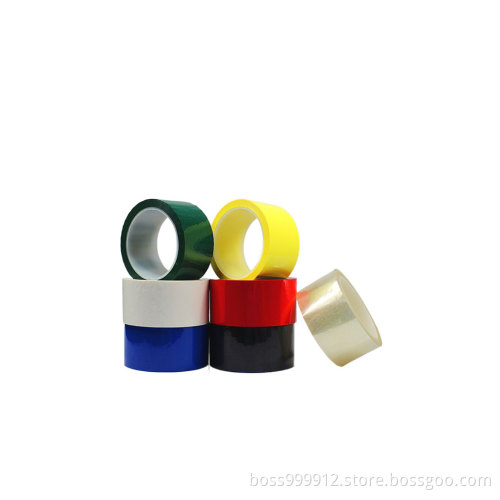

Polyester Tape With Acrylic Adhesive

The polyester tape with acrylic adhesive is also called Mylar tape. It is a single-sided tape.

Mylar tape is a polyester film (PET Film) as a base material coated with acrylic polymer pressure-sensitive adhesive made of high temperature and high pressure flame retardant insulating adhesive tape. Polyester adhesive tape has the characteristics of high temperature resistance, high pressure resistance, good insulation performance and flame retardants. It is often used for insulation wrapping of various motors and electronic resistance parts such as transformers, motors, capacitors, etc.also known as polyester insulation tape.

Polyester Tape With Acrylic Adhesive-Technical Data
Color：light yellow,dark yellow,blue,red,green,black,white,clear,customized

Carrier：PET film

Adhesive：Acrylic

Thickness：0.055mm，0.08mm(customized）

Adhesion：700g-900g

Withstand Voltage：6000（Volts）

Temperature:100℃ 30mins

Core size:25.4mm/38mm/76mm

Application Of Polyester Tape With Acrylic Adhesive
Suitable for insulation and fixing of various motors and electronic components such as transformers, capacitors, relays, voltage regulators, motors, etc.

Motor stator coil cover, motor coil fixing, power transformer coil wrapping and outer insulation,

During the impregnation process of the circuit board, cover the gold finger parts to prevent the plating solution from immersing and contaminating, and protect the circuit board,

Main Features Of Polyester Tape With Acrylic Adhesive
Strong adhesion

Many specifications and many colors

Chemical resistant, moisture and flame retardant

Customized specifications are more practical

As a single sided pet tape supplier, we have types of china pet tape for sale, if you have needs, please contact us.
