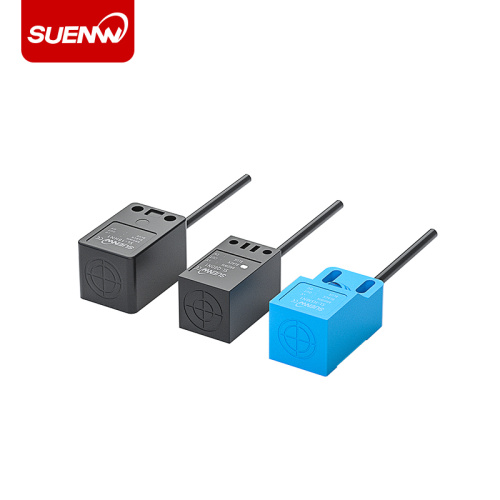

Square Proximity Sensor SL-F10MN1/F10MN2
-
$13.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,L/C |
|---|
Square Proximity Sensor SL-F10MN1/F10MN2
- Proximity sensor features: multi-functional, not only to achieve multi-sensor, multi-parameter integrated measurement, expanding the range of measurement and use, high performance to price ratio
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
SL-H5M□□ |
SL-Q8D□□ |
SL-F10M□□ |
SL-F18M□□ |
SL-F20M□□ |
|
|
Maximum Sensing Distance |
5mm±10% |
8mm±10% |
10mm±10% |
12mm±10% |
20mm±10% |
|
|
Stable Sensing Distance |
0-4mm |
0-4mm |
0-8mm |
0-10mm |
0-15mm |
|
|
Standard Sensing Object |
Iron : 15*15*1mm |
Iron : 15*15*1mm |
Iron : 40*40*1mm |
Iron : 15*15*1mm |
Iron : 50*50*1mm |
|
|
Power Supply Voltage |
12 to 24V DC Pulse(p-p) 10% max |
|||||
|
Current Consumption |
10mA max |
15mA max |
||||
|
Control Output |
Open collector output |
Open collector output 100mA max(DC 12V)、200mA max(DC 24V) |
||||
|
Differential Travel |
10% max of the Sensing distance |
15% max of the Sensing distance |
||||
|
Differential Travel Frequency |
500kHz min |
- |
40kHz min |
|||
|
Circuit Protection |
Reverse connection, surge absorption |
|||||
|
Working Status Indicator |
Sensing indicator(Red LED) |
|||||
|
Ambient Temperature |
Operating, Storage: -25 to +70℃(With no icing or condensation) |
|||||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH(With no icing) |
|||||
|
Residual Voltage |
1V max(Load: 50mA) Cable length: 2m |
|||||
|
Insulating Resistance |
50Ω max.(DC500V) Between current-carrying parts and case |
|||||
|
Voltage Withstand |
AC 1000V 50/60Hz 1min Between current-carrying parts and case |
|||||
|
Vibration |
Durable |
10 to 55Hz Complex amplitude 1.5mm each in X, Y, and Z directions 2h |
||||
|
Shock |
Durable |
200m/s² each in X, Y, and Z directions 10 times |
500m/s² each in X, Y, and Z directions 3 times |
|||
|
Protective Structure |
IEC-IP67 |
|||||
|
Material |
Case |
Heat resistance ABS |
||||
|
Sensing Surface |
Heat resistance ABS |
|||||
|
Quality |
Approx: 90g |
Approx: 240g |
Approx: 100g |
Approx : 340g |
||
|
Accessories |
- |
Mounting bracket |
||||
