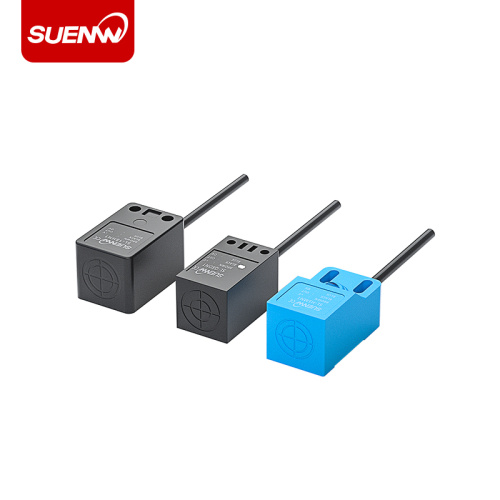

Square Proximity Sensor SL-18HN1/18HN2
-
$10.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,L/C |
|---|
Proximity Sensor SL-18HN1/18HN2:
- Proximity sensors, also known as contactless proximity sensors, are the ideal electronic sensor quantity sensors. When a metal detecting body approaches the sensor's sensing area, the sensor is able to issue electrical commands without contact, pressure or sparks, quickly and accurately respond to the position and travel of the moving mechanism.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
SL-H5M□□ |
SL-Q8D□□ |
SL-F10M□□ |
SL-F18M□□ |
SL-F20M□□ |
|
|
Maximum Sensing Distance |
5mm±10% |
8mm±10% |
10mm±10% |
12mm±10% |
20mm±10% |
|
|
Stable Sensing Distance |
0-4mm |
0-4mm |
0-8mm |
0-10mm |
0-15mm |
|
|
Standard Sensing Object |
Iron : 15*15*1mm |
Iron : 15*15*1mm |
Iron : 40*40*1mm |
Iron : 15*15*1mm |
Iron : 50*50*1mm |
|
|
Power Supply Voltage |
12 to 24V DC Pulse(p-p) 10% max |
|||||
|
Current Consumption |
10mA max |
15mA max |
||||
|
Control Output |
Open collector output |
Open collector output 100mA max(DC 12V)、200mA max(DC 24V) |
||||
|
Differential Travel |
10% max of the Sensing distance |
15% max of the Sensing distance |
||||
|
Differential Travel Frequency |
500kHz min |
- |
40kHz min |
|||
|
Circuit Protection |
Reverse connection, surge absorption |
|||||
|
Working Status Indicator |
Sensing indicator(Red LED) |
|||||
|
Ambient Temperature |
Operating, Storage: -25 to +70℃(With no icing or condensation) |
|||||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH(With no icing) |
|||||
|
Residual Voltage |
1V max(Load: 50mA) Cable length: 2m |
|||||
|
Insulating Resistance |
50Ω max.(DC500V) Between current-carrying parts and case |
|||||
|
Voltage Withstand |
AC 1000V 50/60Hz 1min Between current-carrying parts and case |
|||||
|
Vibration |
Durable |
10 to 55Hz Complex amplitude 1.5mm each in X, Y, and Z directions 2h |
||||
|
Shock |
Durable |
200m/s² each in X, Y, and Z directions 10 times |
500m/s² each in X, Y, and Z directions 3 times |
|||
|
Protective Structure |
IEC-IP67 |
|||||
|
Material |
Case |
Heat resistance ABS |
||||
|
Sensing Surface |
Heat resistance ABS |
|||||
|
Quality |
Approx: 90g |
Approx: 240g |
Approx: 100g |
Approx : 340g |
||
|
Accessories |
- |
Mounting bracket |
||||
