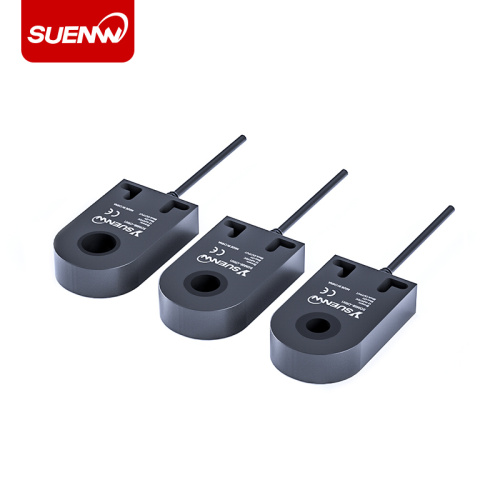

Ring Proximity Sensor SO-M12N1/M12P1

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

Technical advantages of Ring Proximity Sensor SO-M12N1/M12P1

Unlike contact, it is influenced by the surrounding temperature, surrounding objects, similar sensors, including inductive and electrostatic capacity types, and the sensors affect each other. Therefore, mutual interference needs to be considered for the setting of the sensors.
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!

Output Mode	NPN N.O/N.C.	SO-M05N1	SO-M08N1	SO-M10N1	SO-M12N1	SO-M15N1	SO-M22N1	SO-M30N1	SO-M44N1
	PNP N.O/N.C.	SO-M05P1	SO-M08P1	SO-M10P1	SO-M12P1	SO-M15P1	SO-M22P1	SO-M30P1	SO-M44P1
Sensing Hole Diameter		D=5mm	D=8mm	D=10mm	D=12mm	D=15mm	D=22mm	D=30mm	D=44mm
Minimum Detectable Object		0.7mm min		1.0mm min	1.2mm min	2mm min	3mm min		3.5mm min
Working Voltage		DC 10-30V
Current Consumption		15mA
Load Current		100mA max at DC 24V
Operating Temperature Range		-20℃-+60℃
Waterproof Grade		IP65
Outlet Method		Φ4.2×2m/3 lines
Application Power Supply unit		ST-1.ST-T2
Weight		Approx.100g
